PV10-10LFX-L
CONN SPADE TERM 10-12AWG #10 YELManufacturer: Panduit Corp
Categories: Spade Connectors
Quality Control: Learn More

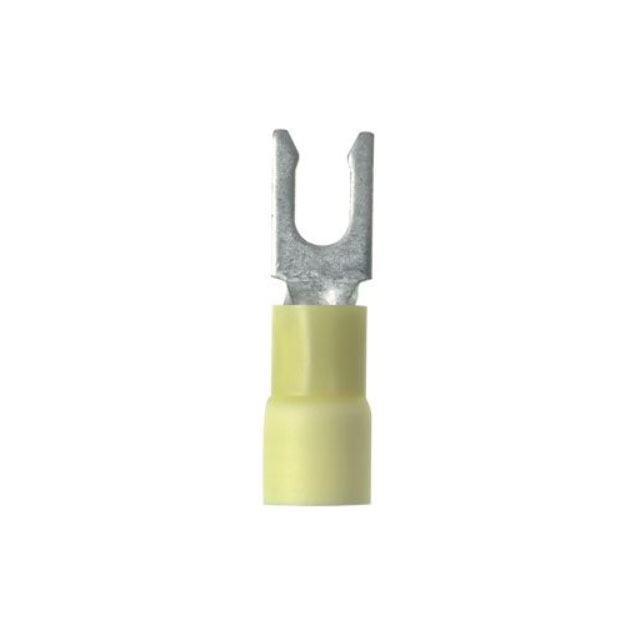

Panduit Corp Pan-Term® PV10-10LFX-L is a Yellow, insulated spade terminal connector designed for crimp termination. This component is engineered for 10-12 AWG wire gauges and features a 10 Stud size. The overall length is 1.120 inches (28.45mm) with an outer edge width of 0.340 inches (8.64mm). Constructed with copper contact material and a tin contact finish, the PV10-10LFX-L offers a serrated termination feature for enhanced grip. Its free-hanging, in-line mounting type makes it suitable for various electrical applications. This component is supplied in bulk packaging. The Panduit Corp Pan-Term® series is widely recognized for its application in industrial automation, telecommunications, and automotive sectors.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 10-12 AWG |
| Insulation | Insulated |
| Terminal Type | Spring, Snap |
| Stud/Tab Size | 10 Stud |
| Length - Overall | 1.120"" (28.45mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.340"" (8.64mm) |
| Contact Material | Copper |
