PNF18-10F-3K
CONN SPADE TERM 18-22AWG #10 REDManufacturer: Panduit Corp
Categories: Spade Connectors
Quality Control: Learn More

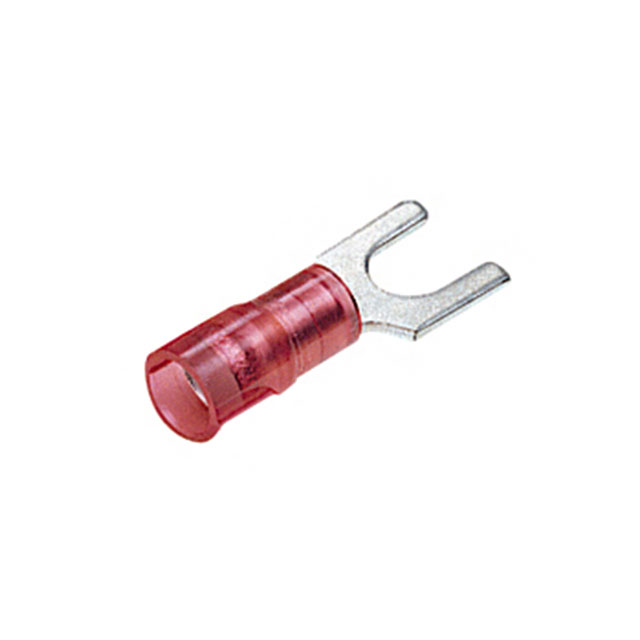

Panduit Corp Pan-Term® PNF18-10F-3K is a red, insulated spade terminal designed for crimp termination. This component accommodates wire gauges from 18 to 22 AWG and features a #10 stud size. Constructed from copper with a tin contact finish, it offers serrated termination for enhanced wire grip. The terminal has an overall length of 0.850 inches (21.59mm) and a width of 0.350 inches (8.89mm). Its free-hanging (in-line) mounting type makes it suitable for various industrial applications, including automotive, industrial automation, and telecommunications where reliable wire connections are critical. The PNF18-10F-3K is supplied on tape and reel (TR) for efficient high-volume assembly.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Serrated Termination |
| Packaging | Tape & Reel (TR) |
| Contact Finish | Tin |
| Color | Red |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 18-22 AWG |
| Insulation | Insulated |
| Terminal Type | Standard |
| Stud/Tab Size | 10 Stud |
| Length - Overall | 0.850"" (21.59mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.350"" (8.89mm) |
| Contact Material | Copper |
