PNF10-8FF-2K
CONN SPADE TERM 10-12AWG #8 YELManufacturer: Panduit Corp
Categories: Spade Connectors
Quality Control: Learn More

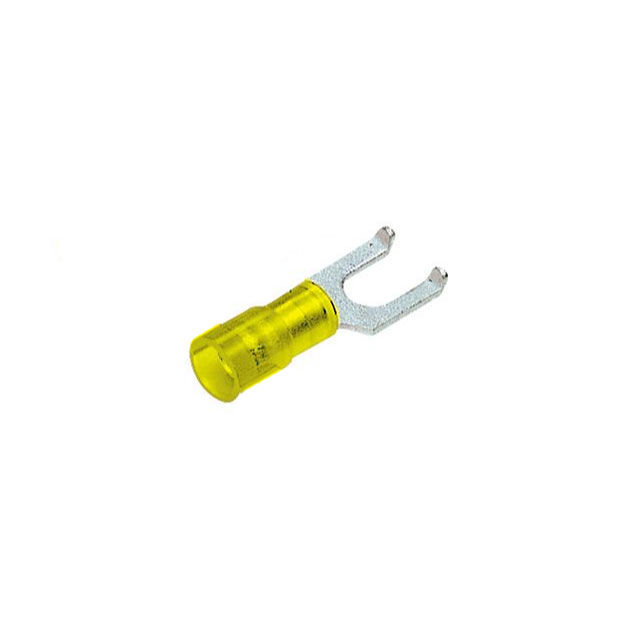

Panduit Corp Pan-Term® PNF10-8FF-2K is a yellow, insulated flanged spade terminal connector designed for crimp termination. This component is engineered for 10-12 AWG wire, accommodating an 8 stud size. Featuring a tin-plated copper contact for reliable conductivity and serrated termination for enhanced holding power, it ensures secure connections in demanding applications. The overall length is 1.050 inches with an outer width of 0.380 inches. This terminal is supplied on tape and reel, facilitating high-volume automated assembly. Its robust construction makes it suitable for use in telecommunications, industrial automation, and power distribution systems where dependable electrical connections are critical.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Serrated Termination |
| Packaging | Tape & Reel (TR) |
| Contact Finish | Tin |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 10-12 AWG |
| Insulation | Insulated |
| Terminal Type | Flanged |
| Stud/Tab Size | 8 Stud |
| Length - Overall | 1.050"" (26.67mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.380"" (9.65mm) |
| Contact Material | Copper |
