PNF10-8F-D
CONN SPADE TERM 10-12AWG #8 YELManufacturer: Panduit Corp
Categories: Spade Connectors
Quality Control: Learn More

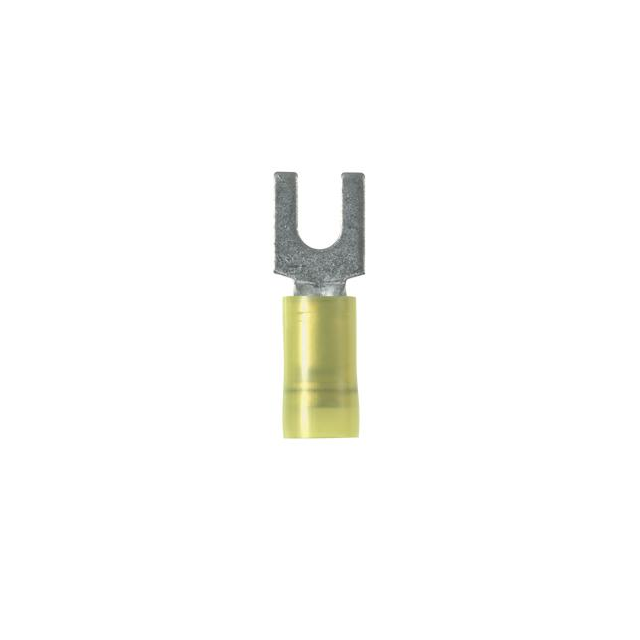

Panduit Corp Pan-Term® PNF10-8F-D is a yellow, insulated spade terminal designed for crimp termination of 10-12 AWG wire. This connector features a tin-plated copper contact material with serrated termination for enhanced wire grip. The overall length is 1.020 inches (25.91mm) with a width of 0.370 inches (9.40mm). It is engineered for a #8 stud size and a free-hanging (in-line) mounting type. This component is commonly utilized in industrial automation, power distribution, and general electronics manufacturing. Packaged in bulk.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 10-12 AWG |
| Insulation | Insulated |
| Terminal Type | Standard |
| Stud/Tab Size | 8 Stud |
| Length - Overall | 1.020"" (25.91mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.370"" (9.40mm) |
| Contact Material | Copper |
