PNF10-6LF-L
CONN SPADE TERM 10-12AWG #6 YELManufacturer: Panduit Corp
Categories: Spade Connectors
Quality Control: Learn More

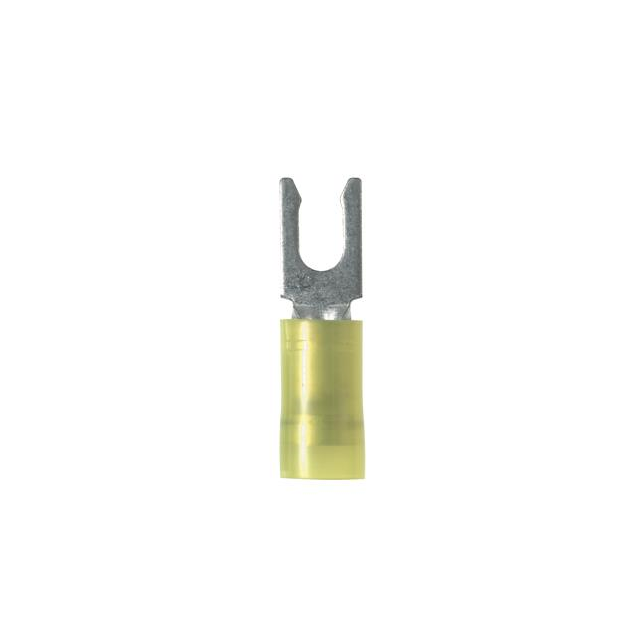

Panduit Corp Pan-Term® PNF10-6LF-L is a yellow, insulated spade terminal connector designed for crimp termination of 10-12 AWG wire. This component features a copper contact material with a tin finish and a serrated termination for enhanced wire retention. The overall length is 1.020 inches (25.91mm) with an outer width of 0.300 inches (7.62mm). It is intended for a #6 stud size and offers a spring, snap terminal type with a free hanging (in-line) mounting configuration. This connector is commonly utilized in the automotive and industrial automation sectors. It is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 10-12 AWG |
| Insulation | Insulated |
| Terminal Type | Spring, Snap |
| Stud/Tab Size | 6 Stud |
| Length - Overall | 1.020"" (25.91mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.300"" (7.62mm) |
| Contact Material | Copper |
