PNF10-6F-D
CONN SPADE TERM 10-12AWG #6 YELManufacturer: Panduit Corp
Categories: Spade Connectors
Quality Control: Learn More

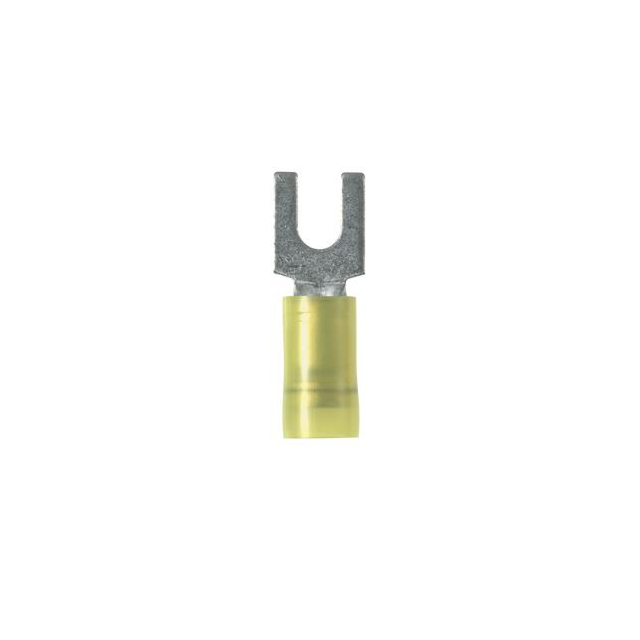

Panduit Corp Pan-Term® PNF10-6F-D offers a yellow, insulated spade terminal connector designed for 10-12 AWG wire. This crimp-style terminal features a tin-plated copper contact with a serrated termination for enhanced wire grip. The overall length is 1.010 inches (25.65mm) with an outer width of 0.310 inches (7.87mm). It is configured for a #6 stud size and utilizes a free-hanging, in-line mounting type. This component is commonly found in industrial automation, telecommunications, and power distribution systems. Packaged in bulk, the PNF10-6F-D provides reliable termination for demanding applications.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 10-12 AWG |
| Insulation | Insulated |
| Terminal Type | Standard |
| Stud/Tab Size | 6 Stud |
| Length - Overall | 1.010"" (25.65mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.310"" (7.87mm) |
| Contact Material | Copper |
