PNF10-10FF-2K
CONN SPADE TERM 10-12AWG #10 YELManufacturer: Panduit Corp
Categories: Spade Connectors
Quality Control: Learn More

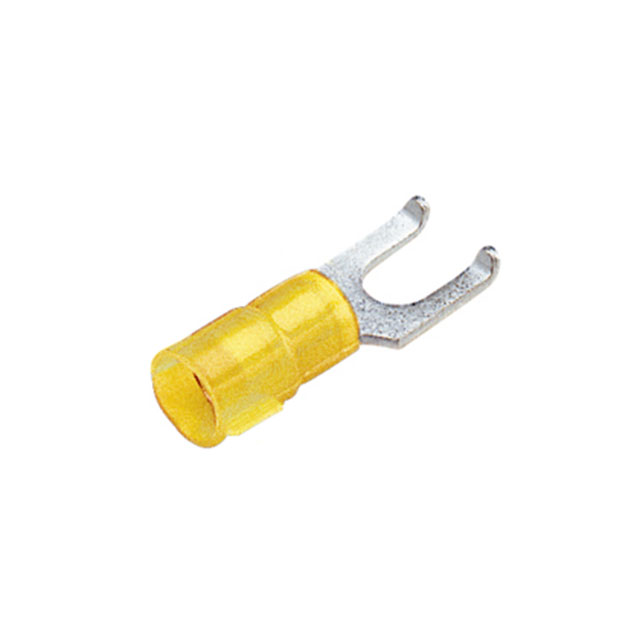

Panduit Corp Pan-Term® PNF10-10FF-2K is a yellow, insulated, flanged spade terminal connector designed for crimp termination. This component is engineered for wire gauges ranging from 10 to 12 AWG and features a #10 stud size for secure connection. The contact material is copper with a tin finish, and the termination employs serrated features for enhanced electrical contact. With an overall length of 1.050 inches (26.67mm) and a width of 0.380 inches (9.65mm), this free-hanging, in-line connector is suitable for applications in the automotive, industrial, and telecommunications sectors. The PNF10-10FF-2K is supplied on tape and reel for efficient automated assembly.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Serrated Termination |
| Packaging | Tape & Reel (TR) |
| Contact Finish | Tin |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 10-12 AWG |
| Insulation | Insulated |
| Terminal Type | Flanged |
| Stud/Tab Size | 10 Stud |
| Length - Overall | 1.050"" (26.67mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.380"" (9.65mm) |
| Contact Material | Copper |
