PN14-6FF-3K
CONN SPADE TERM 14-16AWG #6 BLUManufacturer: Panduit Corp
Categories: Spade Connectors
Quality Control: Learn More

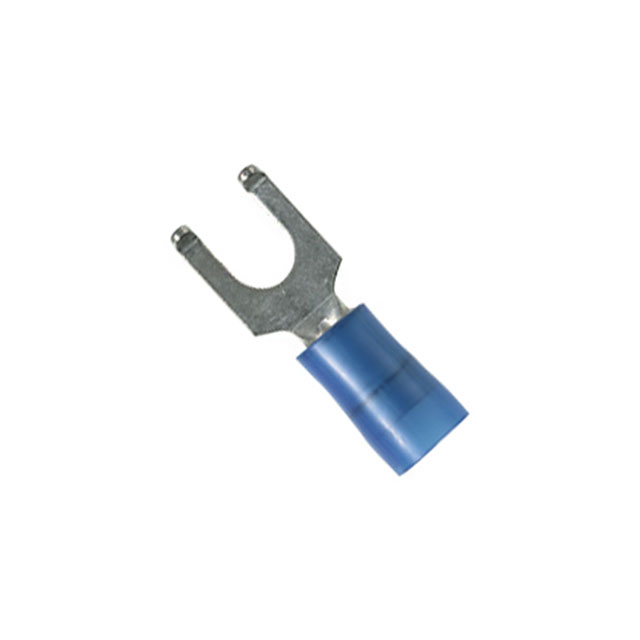

Panduit Corp Pan-Term® PN14-6FF-3K is a blue, insulated spade terminal connector designed for reliable wire termination. This component features a flanged terminal type and a serrated termination for enhanced grip and conductivity. Manufactured from copper with a tin contact finish, it is suitable for wire gauges ranging from 14 to 16 AWG. The terminal accepts a #6 stud size and is designed for free hanging (in-line) mounting. With an overall length of 0.800" (20.32mm) and an outer edge width of 0.280" (7.11mm), this crimp-style connector is supplied on tape and reel (TR). Applications span various industrial sectors including telecommunications, automotive, and industrial automation.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Serrated Termination |
| Packaging | Tape & Reel (TR) |
| Contact Finish | Tin |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 14-16 AWG |
| Insulation | Insulated |
| Terminal Type | Flanged |
| Stud/Tab Size | 6 Stud |
| Length - Overall | 0.800"" (20.32mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.280"" (7.11mm) |
| Contact Material | Copper |
Request a Quote
