PN10-10LF-E
CONN SPADE TERM 10-12AWG #10 YELManufacturer: Panduit Corp
Categories: Spade Connectors
Quality Control: Learn More

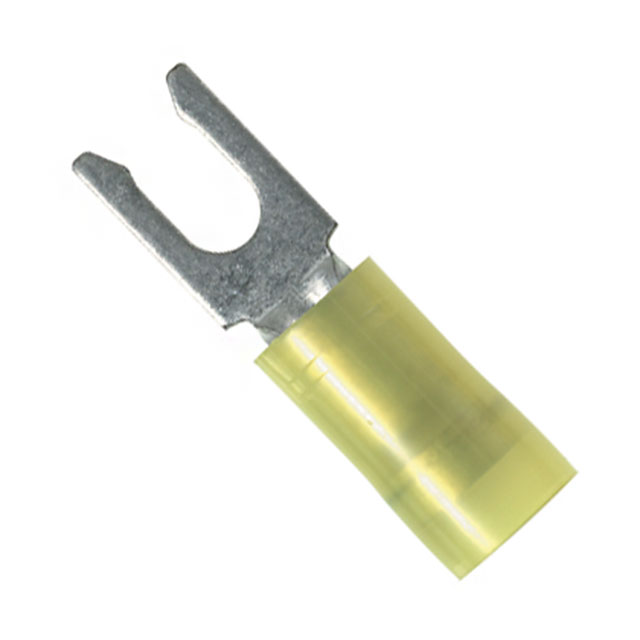

Panduit Corp Pan-Term® PN10-10LF-E is a yellow, insulated spade terminal connector designed for crimp termination. Featuring a butted seam and serrated termination, this component is constructed from tin-plated copper for reliable conductivity. It accepts wire gauges from 10 to 12 AWG and is designed for a #10 stud size. The free-hanging, in-line mounting type and overall length of 1.050 inches (26.67mm) with an outer width of 0.340 inches (8.64mm) make it suitable for various electrical assembly applications. This component is commonly utilized in industrial automation, telecommunications, and power distribution systems.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Butted Seam, Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 10-12 AWG |
| Insulation | Insulated |
| Terminal Type | Spring, Snap |
| Stud/Tab Size | 10 Stud |
| Length - Overall | 1.050"" (26.67mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.340"" (8.64mm) |
| Contact Material | Copper |
