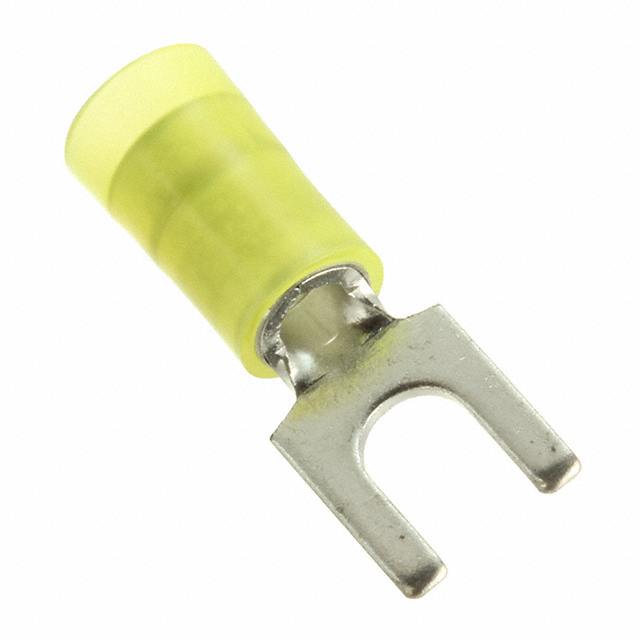

PN10-10F-E
CONN SPADE TERM 10-12AWG #10 YELManufacturer: Panduit Corp
Categories: Spade Connectors
Quality Control: Learn More
Panduit Corp Pan-Term® PN10-10F-E is a yellow, insulated spade terminal designed for crimp termination of 10-12 AWG wire. This component features a tin-plated copper contact for reliable conductivity. The spade opening accommodates a #10 stud size, with an overall length of 1.040" (26.42mm) and a width of 0.370" (9.40mm). Its free hanging (in-line) mounting type makes it suitable for various electrical wiring applications. This product is supplied in bulk packaging. The Panduit Pan-Term® series is widely utilized across industrial automation, telecommunications, and power distribution sectors requiring robust and dependable wire termination solutions.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 10-12 AWG |
| Insulation | Insulated |
| Terminal Type | Standard |
| Stud/Tab Size | 10 Stud |
| Length - Overall | 1.040"" (26.42mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.370"" (9.40mm) |
| Contact Material | Copper |
