PMV1-3FB-CY
CONN SPADE TERM 18-22AWG M3 REDManufacturer: Panduit Corp
Categories: Spade Connectors
Quality Control: Learn More

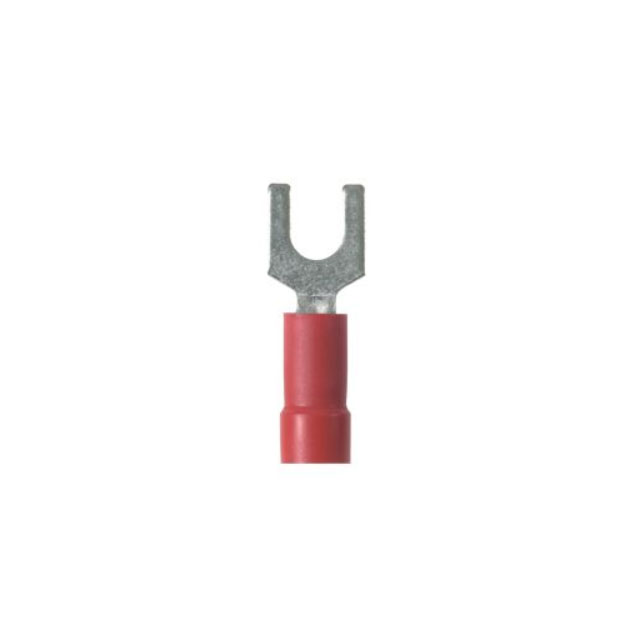

Panduit Corp Pan-Term® PMV1-3FB-CY is a red, insulated M3 stud spade terminal connector designed for crimp termination of 18-22 AWG wire. This component features a butted seam construction for enhanced durability and serrated termination to ensure superior electrical contact. Manufactured from copper with a tin contact finish, the PMV1-3FB-CY offers reliable performance in demanding applications. Its free-hanging (in-line) mounting type and overall length of 0.850" (21.59mm) make it suitable for various industrial and commercial wiring systems. This product is supplied in bulk packaging and is commonly utilized in telecommunications, industrial automation, and power distribution industries. The outer width measures 0.230" (5.84mm).
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Butted Seam, Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Red |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 18-22 AWG |
| Insulation | Insulated |
| Terminal Type | Standard |
| Stud/Tab Size | M3 Stud |
| Length - Overall | 0.850"" (21.59mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.230"" (5.84mm) |
| Contact Material | Copper |
