PMNF6-5F-L
CONN SPADE TERM 10-12AWG M5 YELManufacturer: Panduit Corp
Categories: Spade Connectors
Quality Control: Learn More

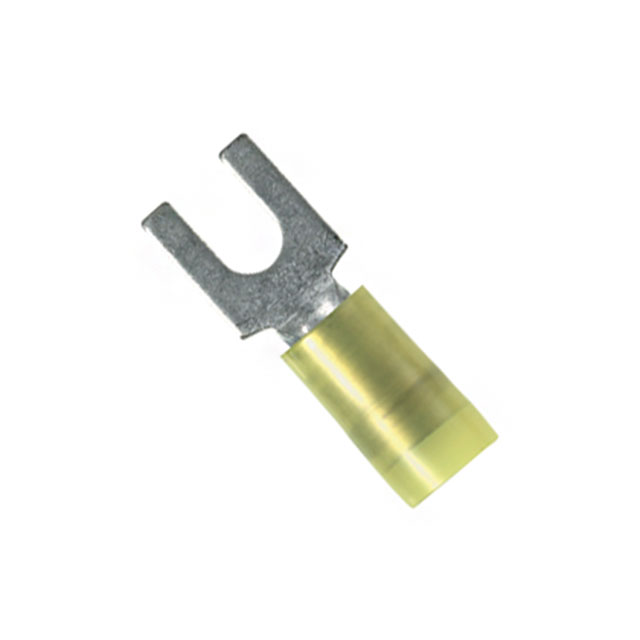

Panduit Corp Pan-Term® PMNF6-5F-L is a yellow, insulated M5 stud spade terminal connector designed for crimp termination of 10-12 AWG wire. Featuring a serrated termination for enhanced wire grip and built with copper contact material with a tin finish, this connector ensures reliable electrical connections. The overall length is 1.059 inches (26.90mm) with an outer width of 0.374 inches (9.50mm). This component is suitable for in-line, free-hanging applications and is supplied in bulk packaging. Its robust construction makes it ideal for use in industrial automation, power distribution, and automotive electrical systems.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 10-12 AWG |
| Insulation | Insulated |
| Terminal Type | Standard |
| Stud/Tab Size | M5 Stud |
| Length - Overall | 1.059"" (26.90mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.374"" (9.50mm) |
| Contact Material | Copper |
