PMNF2-6F-C
CONN SPADE TERM 14-16AWG M6 BLUManufacturer: Panduit Corp
Categories: Spade Connectors
Quality Control: Learn More

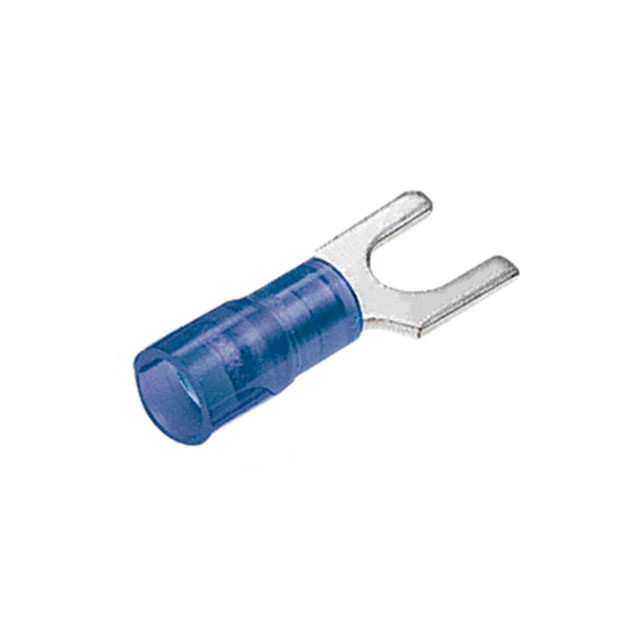

Panduit Corp Pan-Term® PMNF2-6F-C is a blue, insulated spade terminal connector designed for crimp termination of 14-16 AWG wire. Featuring a tin-plated copper body with serrated termination for enhanced conductivity and secure connection, this component is suitable for M6 stud mounting. The overall length is 1.031 inches (26.20mm) with an outer width of 0.440 inches (11.18mm). Commonly utilized in industrial automation, telecommunications, and power distribution applications, this terminal is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 14-16 AWG |
| Insulation | Insulated |
| Terminal Type | Standard |
| Stud/Tab Size | M6 Stud |
| Length - Overall | 1.031"" (26.20mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.440"" (11.18mm) |
| Contact Material | Copper |
