PMNF1-4F-3K
CONN SPADE TERM 18-22AWG M4 REDManufacturer: Panduit Corp
Categories: Spade Connectors
Quality Control: Learn More

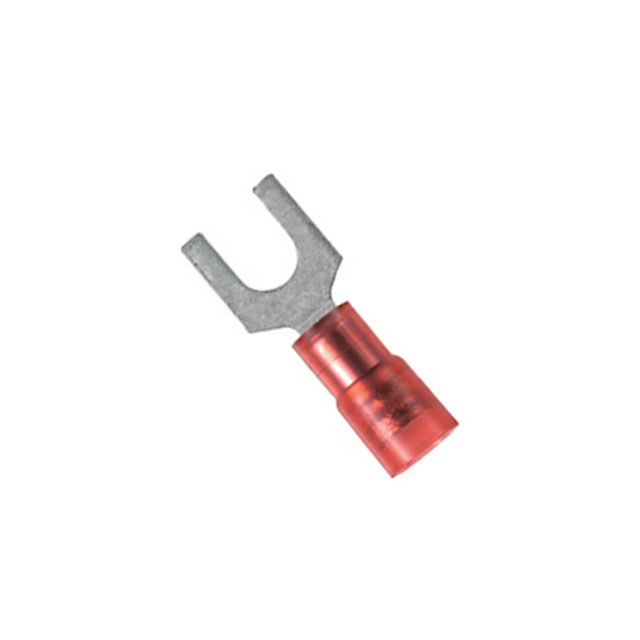

Panduit Corp. Pan-Term® PMNF1-4F-3K is a red, insulated M4 stud spade terminal connector designed for crimp termination of 18-22 AWG wire. Featuring a brass contact material with a tin finish, this component offers a serrated termination for enhanced wire retention. The connector's overall length is 0.850 inches (21.59mm) with an outer width of 0.320 inches (8.13mm). It is suitable for free-hanging (in-line) mounting applications. This terminal is supplied on tape and reel (TR). Its robust construction makes it a reliable choice for various industrial and automotive applications where secure electrical connections are critical.
Additional Information
Series: Pan-Term®RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Serrated Termination |
| Packaging | Tape & Reel (TR) |
| Contact Finish | Tin |
| Color | Red |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 18-22 AWG |
| Insulation | Insulated |
| Terminal Type | Standard |
| Stud/Tab Size | M4 Stud |
| Length - Overall | 0.850"" (21.59mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.320"" (8.13mm) |
| Contact Material | Brass |
