P22-2F-M
CONN SPADE TERM 22-26AWG #2Manufacturer: Panduit Corp
Categories: Spade Connectors
Quality Control: Learn More

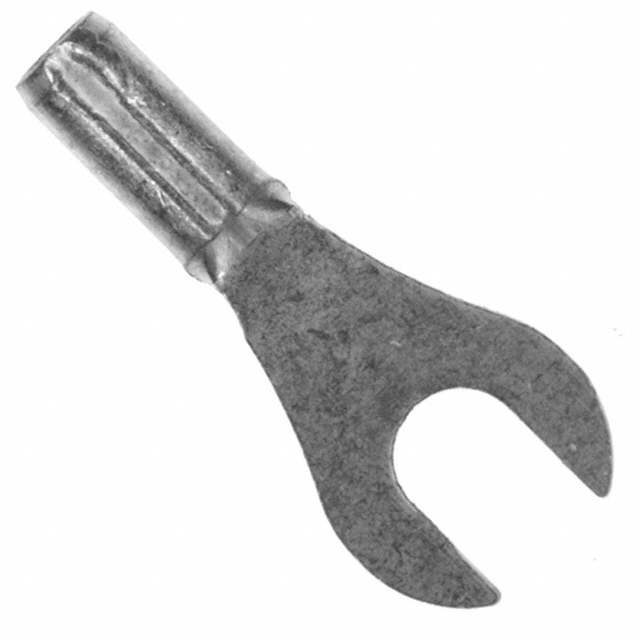

Panduit Corp Pan-Term® P22-2F-M is a non-insulated, standard circular spade terminal designed for crimp termination of 22-26 AWG wire. This component features a 2 stud configuration with a 0.200" (5.08mm) width and a 0.490" (12.45mm) overall length. The contact is constructed from copper with a tin finish, and incorporates a brazed seam for enhanced durability. The mounting type is free hanging (in-line). This terminal is commonly utilized in industrial automation, electrical control systems, and general automotive applications where reliable wire termination is critical. The product is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Brazed Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 22-26 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Standard, Circular |
| Stud/Tab Size | 2 Stud |
| Length - Overall | 0.490"" (12.45mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.200"" (5.08mm) |
| Contact Material | Copper |
