P18-6FN-M
CONN SPADE TERM 18-22AWG #6Manufacturer: Panduit Corp
Categories: Spade Connectors
Quality Control: Learn More

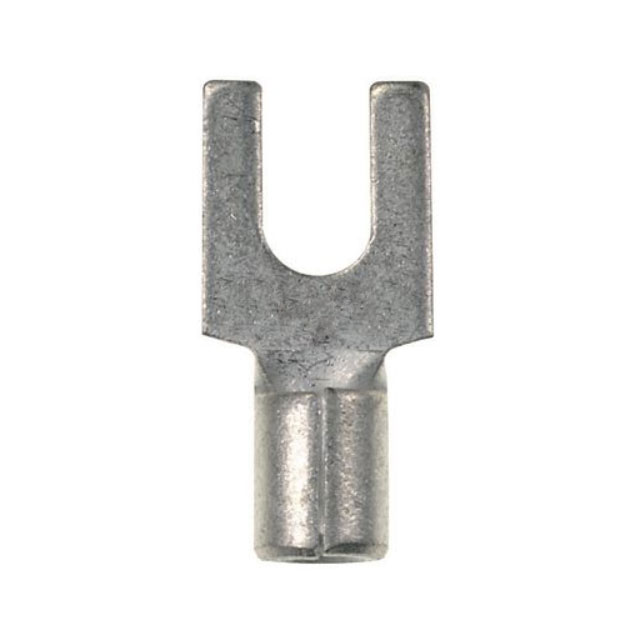

Panduit Corp Pan-Term® P18-6FN-M is a standard, non-insulated spade terminal engineered for reliable wire termination. This crimp-style connector features a copper contact material with a tin finish, designed to accommodate wire gauges from 16 to 22 AWG. The terminal boasts a brazed seam for enhanced durability and a 6 Stud configuration for secure mounting. With an overall length of 0.630 inches (16.00mm) and an outer width of 0.240 inches (6.10mm), it is suitable for free-hanging (in-line) applications. This component is commonly utilized in industrial automation, automotive, and telecommunications sectors where robust electrical connections are critical. Supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 16-22 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Standard |
| Stud/Tab Size | 6 Stud |
| Length - Overall | 0.630"" (16.00mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.240"" (6.10mm) |
| Contact Material | Copper |
