P18-10LFN-C
CONN SPADE TERM 18-22AWG #10Manufacturer: Panduit Corp
Categories: Spade Connectors
Quality Control: Learn More

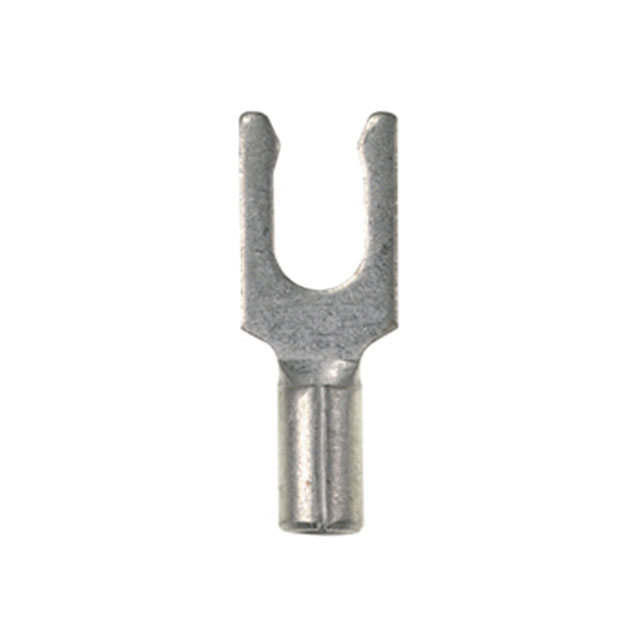

Panduit Corp Pan-Term® P18-10LFN-C is a non-insulated spade terminal connector designed for 18-22 AWG wire. This component features a #10 stud size and a brazed seam construction for enhanced durability. The contact material is copper with a tin finish, ensuring reliable conductivity. Its free hanging (in-line) mounting type and crimp termination provide a secure connection. Applications for this terminal include industrial automation, telecommunications infrastructure, and power distribution systems. The overall length is 0.740 inches (18.80mm) with an outer width of 0.280 inches (7.11mm). This product is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 18-22 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Spring, Snap |
| Stud/Tab Size | 10 Stud |
| Length - Overall | 0.740"" (18.80mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.280"" (7.11mm) |
| Contact Material | Copper |
Request a Quote
