P14-8FF-C
CONN SPADE TERM 14-16AWG #8Manufacturer: Panduit Corp
Categories: Spade Connectors
Quality Control: Learn More

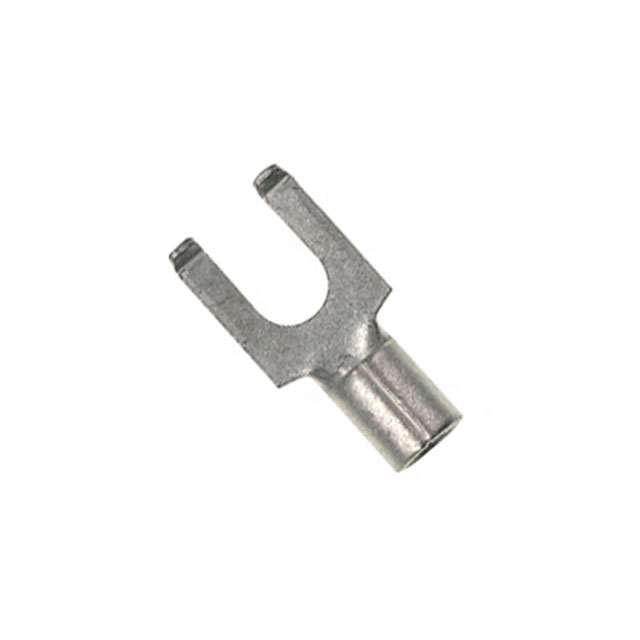

The Panduit Corp Pan-Term® P14-8FF-C is a non-insulated, flanged spade terminal designed for crimp termination of 14-16 AWG wire. This component features a brazed seam for enhanced durability and serrated termination for superior wire retention. The terminal accommodates an 8 stud size and is constructed from copper with a tin contact finish. With an overall length of 0.720" (18.29mm) and a width of 0.310" (7.87mm), it is suitable for free hanging (in-line) mounting. This spade terminal is commonly utilized in industrial automation, power distribution, and control systems. It is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam, Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 14-16 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Flanged |
| Stud/Tab Size | 8 Stud |
| Length - Overall | 0.720"" (18.29mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.310"" (7.87mm) |
| Contact Material | Copper |
