P10-8F-L
CONN SPADE TERM 10-12AWG #8Manufacturer: Panduit Corp
Categories: Spade Connectors
Quality Control: Learn More

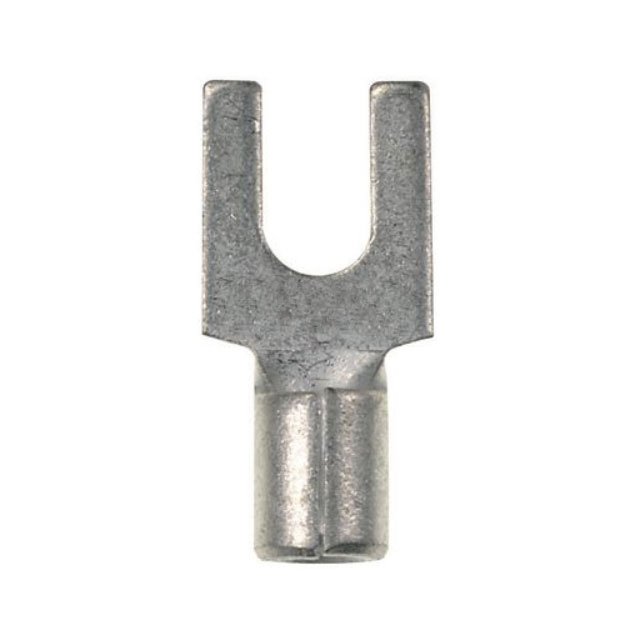

Panduit Corp Pan-Term® P10-8F-L is a non-insulated, standard spade terminal connector designed for crimp termination. This component accommodates wire gauges from 10 to 12 AWG and features an 8 stud terminal size. Constructed with a copper contact material and a tin contact finish, it offers a brazed seam and serrated termination for enhanced reliability. The overall length is 0.780 inches (19.81mm) with a width of 0.370 inches (9.40mm). This free-hanging (in-line) mounting type terminal is supplied in bulk packaging. It is utilized in industrial automation, telecommunications, and power distribution systems.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam, Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 10-12 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Standard |
| Stud/Tab Size | 8 Stud |
| Length - Overall | 0.780"" (19.81mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.370"" (9.40mm) |
| Contact Material | Copper |
Request a Quote
