P10-14F-L
CONN SPADE TERM 10-12AWG #1/4Manufacturer: Panduit Corp
Categories: Spade Connectors
Quality Control: Learn More

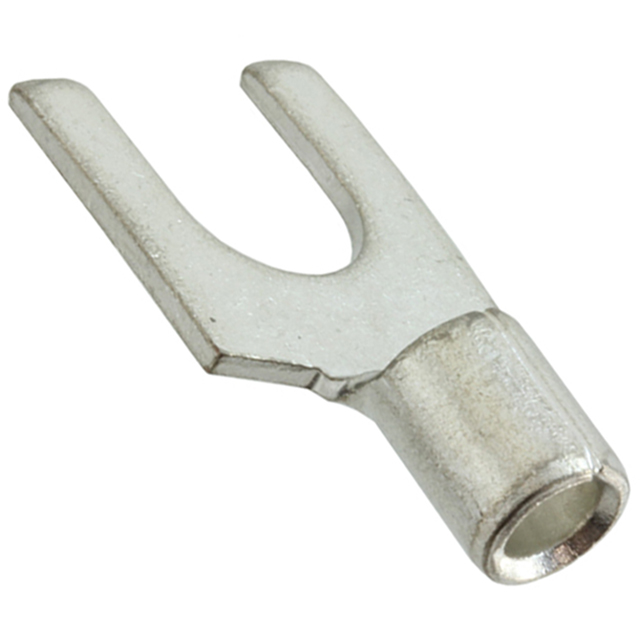

The Panduit Corp P10-14F-L, part of the Pan-Term® series, is a non-insulated standard spade terminal designed for reliable wire termination. This crimp-style connector accepts wire gauges from 10 to 12 AWG and features a 1/4 stud size for secure fastening. Constructed with a copper contact material and tin plating, it offers excellent conductivity and corrosion resistance. Key features include a brazed seam for enhanced durability and serrated termination to ensure a strong, vibration-resistant connection. With an overall length of 0.890 inches (22.61mm) and a width of 0.500 inches (12.70mm), it is suitable for free-hanging (in-line) mounting. This component finds application in industrial automation, electrical distribution, and general-purpose wiring where robust and dependable connections are critical. It is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam, Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 10-12 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Standard |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | 0.890"" (22.61mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.500"" (12.70mm) |
| Contact Material | Copper |
Request a Quote
