EV18-6FBK-Q
STRONGHOLD FORK TERMINAL, VINYLManufacturer: Panduit Corp
Categories: Spade Connectors
Quality Control: Learn More

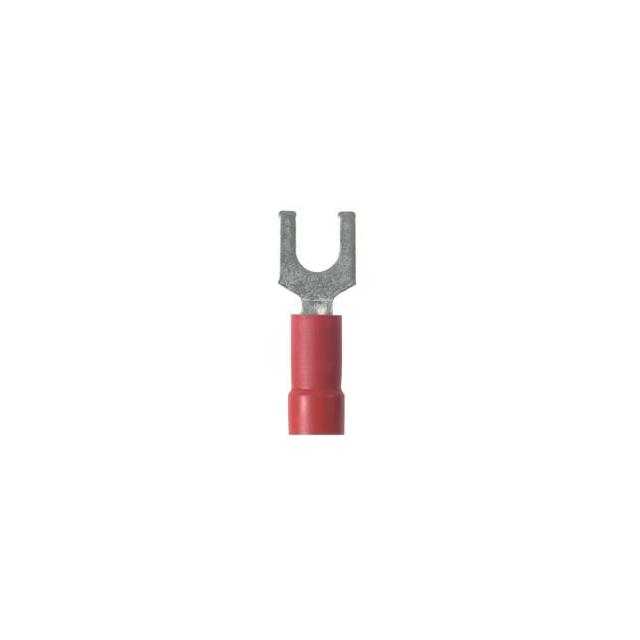

Panduit Corp StrongHold™ EV18-6FBK-Q is a red, vinyl-insulated spade terminal connector designed for reliable crimp termination. This component utilizes a standard terminal type with a 6 stud configuration and a 0.250" (6.35mm) width. Constructed from copper with a tin contact finish, it features a butted seam for enhanced durability. Rated for 18-22 AWG wire, this bulk-packaged terminal offers a free hanging (in-line) mounting type and an overall length of 0.830" (21.08mm). It is commonly deployed in industrial automation, telecommunications, and automotive applications where secure electrical connections are critical.
Additional Information
Series: StrongHold™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Butted Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Red |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 18-22 AWG |
| Insulation | Insulated |
| Terminal Type | Standard |
| Stud/Tab Size | 6 Stud |
| Length - Overall | 0.830"" (21.08mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.250"" (6.35mm) |
| Contact Material | Copper |
Request a Quote
