EV18-6FBK-L
STRONGHOLD FORK TERMINAL, VINYLManufacturer: Panduit Corp
Categories: Spade Connectors
Quality Control: Learn More

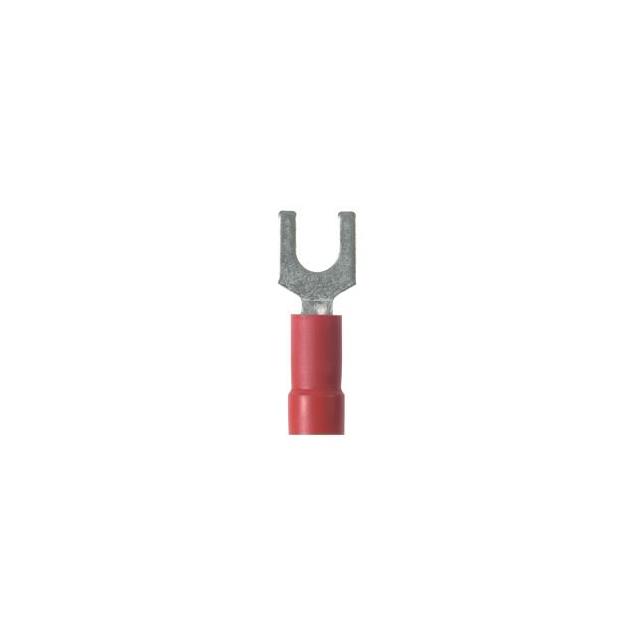

Panduit Corp StrongHold™ EV18-6FBK-L is a red, insulated, standard spade terminal connector designed for crimp termination. This component accepts 18-22 AWG wire and features a 6 stud configuration with a 0.250"" (6.35mm) width. The overall length is 0.830"" (21.08mm). Constructed with a copper contact material and tin finish, it utilizes a butted seam feature for reliable performance. The free hanging (in-line) mounting type makes it suitable for various applications. This Panduit Corp StrongHold™ terminal is commonly found in industrial automation and electrical infrastructure projects.
Additional Information
Series: StrongHold™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Butted Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Red |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 18-22 AWG |
| Insulation | Insulated |
| Terminal Type | Standard |
| Stud/Tab Size | 6 Stud |
| Length - Overall | 0.830"" (21.08mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.250"" (6.35mm) |
| Contact Material | Copper |
