EV14-8FBK-Q
STRONGHOLD FORK TERMINAL, VINYLManufacturer: Panduit Corp
Categories: Spade Connectors
Quality Control: Learn More

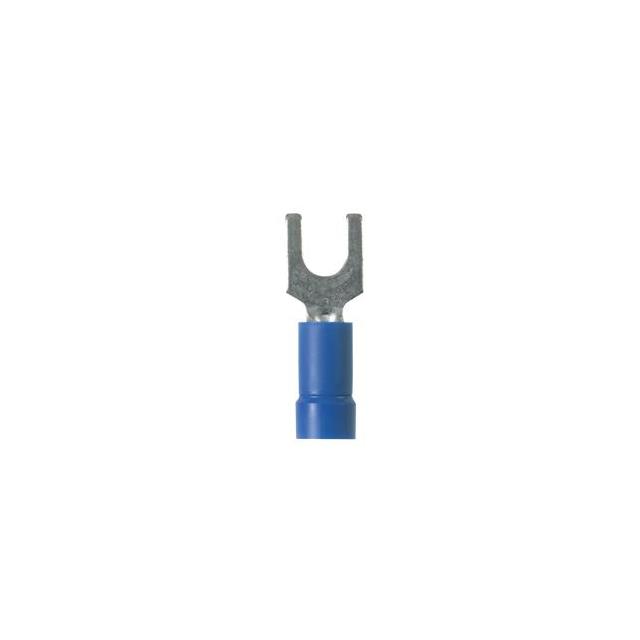

Panduit Corp StrongHold™ EV14-8FBK-Q is a blue, insulated fork terminal designed for reliable electrical connections. This component features a vinyl insulation with a butted seam construction, ensuring durability and proper wire termination. Engineered for 14-16 AWG wire, it offers a stud/tab size of 8 for secure mounting. The terminal type is standard, with a tin contact finish applied to a copper contact material. Its free-hanging, in-line mounting type facilitates straightforward installation in industrial automation, telecommunications, and automotive applications. The overall length is 0.830 inches (21.08mm) with outer edges measuring 0.280 inches (7.11mm). This Panduit Corp component is supplied in bulk packaging.
Additional Information
Series: StrongHold™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Butted Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 14-16 AWG |
| Insulation | Insulated |
| Terminal Type | Standard |
| Stud/Tab Size | 8 Stud |
| Length - Overall | 0.830"" (21.08mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.280"" (7.11mm) |
| Contact Material | Copper |
