EV14-6LFBK-L
STRONGHOLD LOCKING FORK TERMINALManufacturer: Panduit Corp
Categories: Spade Connectors
Quality Control: Learn More

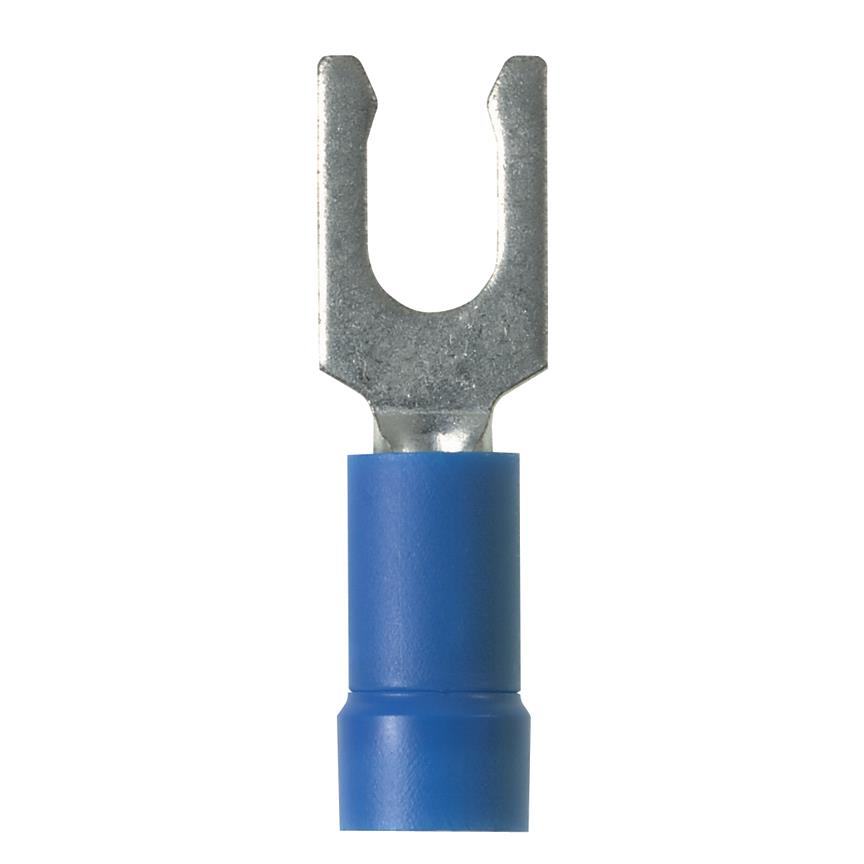

Panduit Corp StrongHold™ EV14-6LFBK-L is a blue insulated spade terminal connector designed for crimp termination of 14-16 AWG wire. Featuring a butted seam construction and a tin-plated copper contact material, this terminal offers reliable electrical connection. The 6 stud spade configuration ensures secure mounting. Its insulated design and spring, snap terminal type make it suitable for applications requiring secure wire management. This component is commonly utilized in industrial automation, power distribution, and telecommunications sectors. The overall length is 0.830 inches (21.08mm) with an outer width of 0.240 inches (6.10mm). Packaged in bulk for efficient inventory management.
Additional Information
Series: StrongHold™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Butted Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 14-16 AWG |
| Insulation | Insulated |
| Terminal Type | Spring, Snap |
| Stud/Tab Size | 6 Stud |
| Length - Overall | 0.830"" (21.08mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.240"" (6.10mm) |
| Contact Material | Copper |
Request a Quote
