EV14-6FBK-Q
STRONGHOLD FORK TERMINAL, VINYLManufacturer: Panduit Corp
Categories: Spade Connectors
Quality Control: Learn More

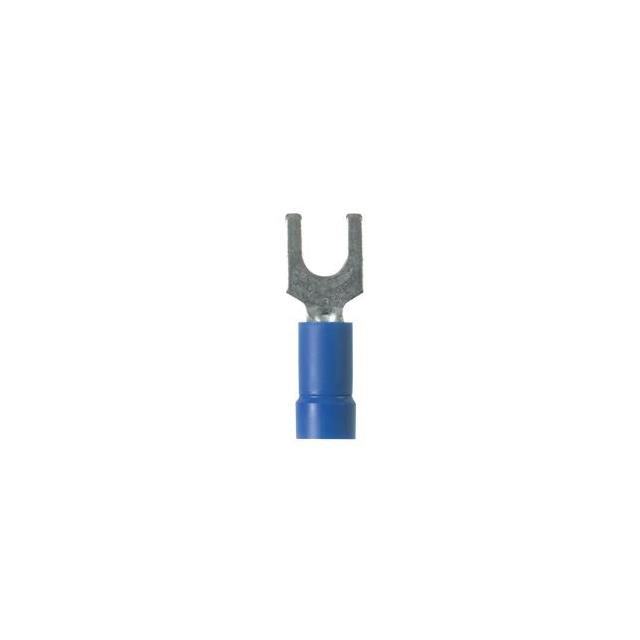

Panduit Corp StrongHold™ EV14-6FBK-Q is a blue, insulated vinyl fork terminal designed for 14-16 AWG wire. This standard spade connector features a 6 stud configuration and a tin contact finish on copper material for reliable conductivity. The terminal utilizes a butted seam construction for enhanced performance. Its free-hanging (in-line) mounting type and crimp termination method ensure secure and efficient connections. With an overall length of 0.830 inches (21.08mm) and an outer width of 0.280 inches (7.11mm), this component is suitable for applications in industrial automation, telecommunications, and automotive manufacturing. The EV14-6FBK-Q is supplied in bulk packaging.
Additional Information
Series: StrongHold™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Butted Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 14-16 AWG |
| Insulation | Insulated |
| Terminal Type | Standard |
| Stud/Tab Size | 6 Stud |
| Length - Overall | 0.830"" (21.08mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.280"" (7.11mm) |
| Contact Material | Copper |
