EV14-10LFBK-Q
STRONGHOLD LOCKING FORK TERMINALManufacturer: Panduit Corp
Categories: Spade Connectors
Quality Control: Learn More

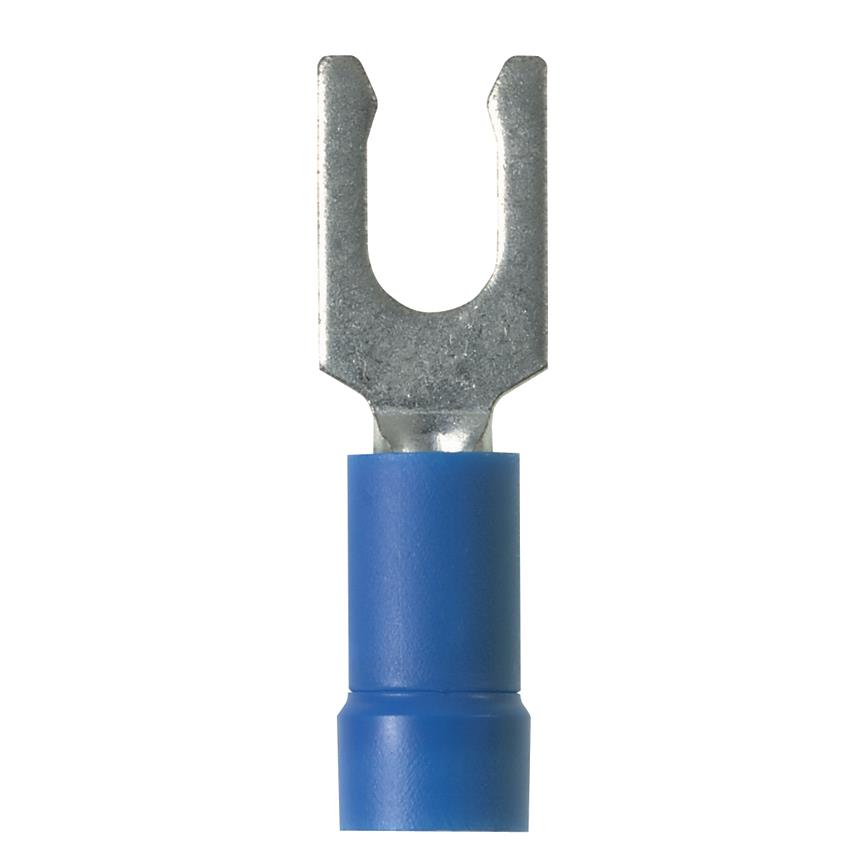

Panduit Corp StrongHold™ EV14-10LFBK-Q is a blue, insulated spade terminal connector designed for crimp termination. This component features a butted seam construction and a 10 stud size, accommodating wire gauges from 14 to 16 AWG. Manufactured with copper contact material and a tin finish, it offers reliable electrical performance. The free-hanging (in-line) mounting type and overall length of 0.830 inches (21.08mm) with an outer width of 0.320 inches (8.13mm) make it suitable for various electrical connections. This terminal is commonly utilized in industrial automation, telecommunications, and automotive sectors. The packaging is Bulk.
Additional Information
Series: StrongHold™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Butted Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 14-16 AWG |
| Insulation | Insulated |
| Terminal Type | Spring, Snap |
| Stud/Tab Size | 10 Stud |
| Length - Overall | 0.830"" (21.08mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.320"" (8.13mm) |
| Contact Material | Copper |
