EV14-10LFBK-L
STRONGHOLD LOCKING FORK TERMINALManufacturer: Panduit Corp
Categories: Spade Connectors
Quality Control: Learn More

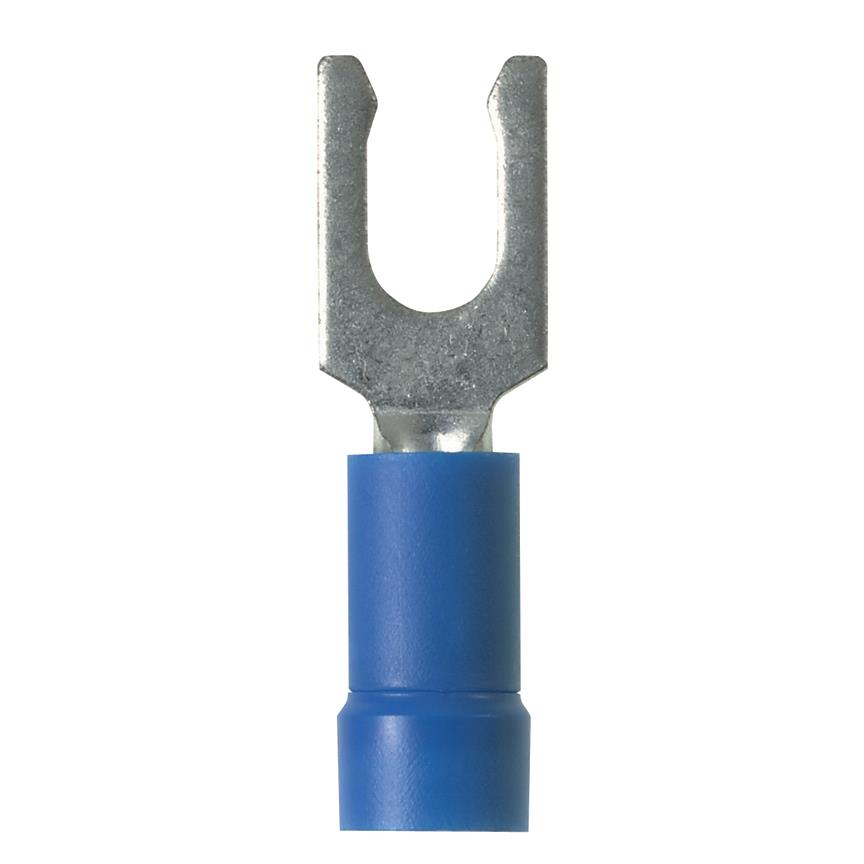

Panduit Corp StrongHold™ EV14-10LFBK-L is a blue, insulated spade terminal connector designed for crimp termination of 14-16 AWG wire. This component features a butted seam construction and a tin-plated copper contact for reliable conductivity. The 10 stud size facilitates secure connections in demanding applications. Its free hanging (in-line) mounting type allows for flexible installation. Applications for this Panduit Corp terminal include industrial automation, telecommunications infrastructure, and automotive manufacturing. The overall length is 0.830 inches (21.08mm) with an outer width of 0.320 inches (8.13mm). Supplied in bulk packaging.
Additional Information
Series: StrongHold™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Butted Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 14-16 AWG |
| Insulation | Insulated |
| Terminal Type | Spring, Snap |
| Stud/Tab Size | 10 Stud |
| Length - Overall | 0.830"" (21.08mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.320"" (8.13mm) |
| Contact Material | Copper |
