EV10-14FBK-Q
STRONGHOLD FORK TERMINAL, VINYLManufacturer: Panduit Corp
Categories: Spade Connectors
Quality Control: Learn More

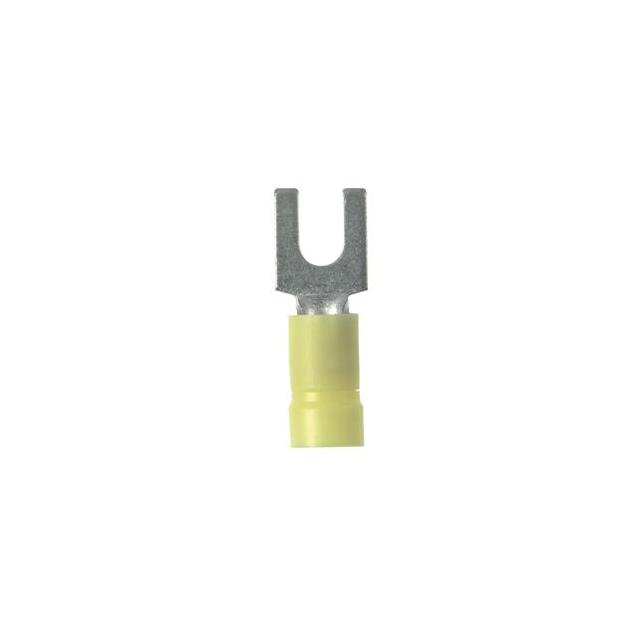

Panduit Corp StrongHold™ EV10-14FBK-Q is a yellow, insulated spade terminal connector designed for crimp termination. Featuring a 1/4 stud size and a butted seam construction, this component is suitable for wire gauges from 10 to 12 AWG. The contact material is copper with a tin finish, ensuring reliable conductivity. The overall length is 1.140 inches (28.96mm) with an outer width of 0.490 inches (12.45mm). This terminal is typically utilized in industrial automation, automotive, and telecommunications applications. The component is supplied in bulk packaging.
Additional Information
Series: StrongHold™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Butted Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 10-12 AWG |
| Insulation | Insulated |
| Terminal Type | Standard |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | 1.140"" (28.96mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.490"" (12.45mm) |
| Contact Material | Copper |
