EV10-10FBK-Q
STRONGHOLD FORK TERMINAL, VINYLManufacturer: Panduit Corp
Categories: Spade Connectors
Quality Control: Learn More

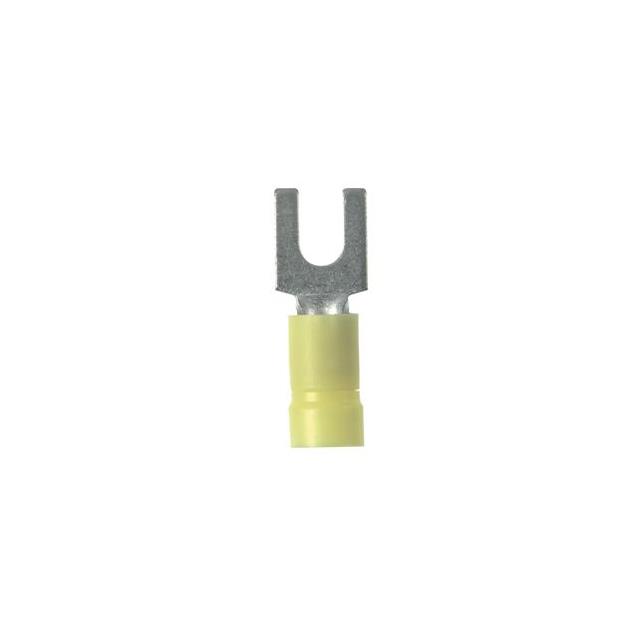

Panduit Corp StrongHold™ EV10-10FBK-Q is a yellow, insulated spade terminal connector designed for robust electrical connections. Featuring a 10 stud terminal type and a vinyl insulation, this component is engineered with a butted seam construction for enhanced reliability. The contact material is copper with a tin finish, suitable for crimp termination of wire gauges ranging from 10 to 12 AWG. With an overall length of 1.040 inches (26.42mm) and an outer width of 0.370 inches (9.40mm), it offers a free-hanging, in-line mounting type. This terminal is utilized in industries requiring secure and dependable wire termination solutions, such as industrial automation and power distribution systems. Packaged in bulk.
Additional Information
Series: StrongHold™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Butted Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 10-12 AWG |
| Insulation | Insulated |
| Terminal Type | Standard |
| Stud/Tab Size | 10 Stud |
| Length - Overall | 1.040"" (26.42mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.370"" (9.40mm) |
| Contact Material | Copper |
