E14-10FB-L
STRONGHOLD FORK TERMINAL, NON-INManufacturer: Panduit Corp
Categories: Spade Connectors
Quality Control: Learn More

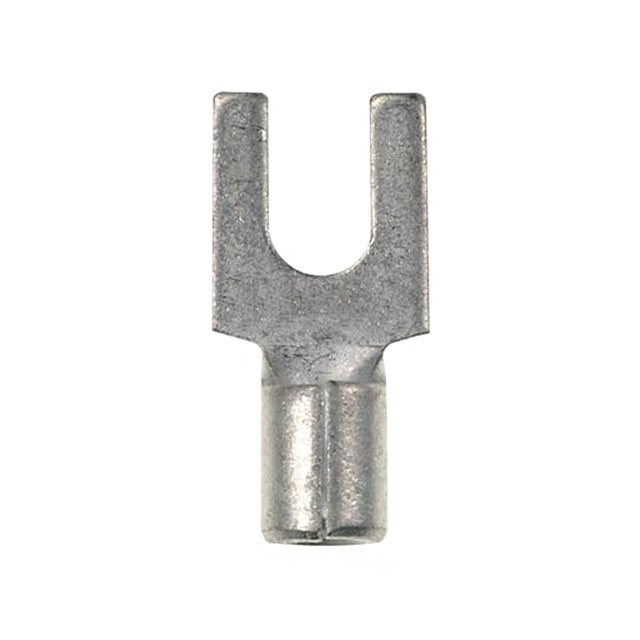

Panduit Corp StrongHold™ E14-10FB-L fork terminal offers robust termination for 14-16 AWG wire. This non-insulated, bulk-packaged component features a tin-plated copper contact for reliable conductivity and a butted seam construction. Designed for in-line, free-hanging applications, it accommodates a 10 Stud size. The terminal's overall length is 0.710 inches (18.03mm) with a width of 0.340 inches (8.64mm). This Panduit Corp StrongHold™ component is integral to reliable electrical connections in industrial automation, automotive, and telecommunications sectors.
Additional Information
Series: StrongHold™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Butted Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 14-16 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Standard |
| Stud/Tab Size | 10 Stud |
| Length - Overall | 0.710"" (18.03mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.340"" (8.64mm) |
| Contact Material | Copper |
