E10-6FB-Q
STRONGHOLD FORK TERMINAL, NON-INManufacturer: Panduit Corp
Categories: Spade Connectors
Quality Control: Learn More

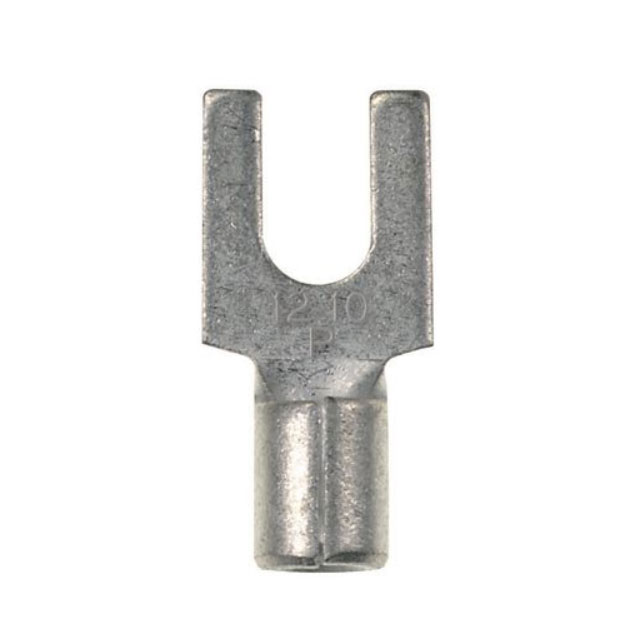

Panduit Corp StrongHold™ E10-6FB-Q is a non-insulated, standard spade terminal connector designed for crimp termination of 10-12 AWG wire. This component features a butted seam construction and serrated termination for enhanced performance. The tin-plated copper contact material ensures reliable conductivity. With a 6 stud size and a mounting type of free hanging (in-line), it offers versatile application. The overall length is 0.750 inches (19.05mm) and the outer edge width is 0.310 inches (7.87mm). This terminal is suitable for use in industrial automation, power distribution, and automotive electrical systems. It is supplied in bulk packaging.
Additional Information
Series: StrongHold™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Butted Seam, Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 10-12 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Standard |
| Stud/Tab Size | 6 Stud |
| Length - Overall | 0.750"" (19.05mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.310"" (7.87mm) |
| Contact Material | Copper |
