S4/0-76R-5
CONN RING FLAT 4/0AWG #7/16Manufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

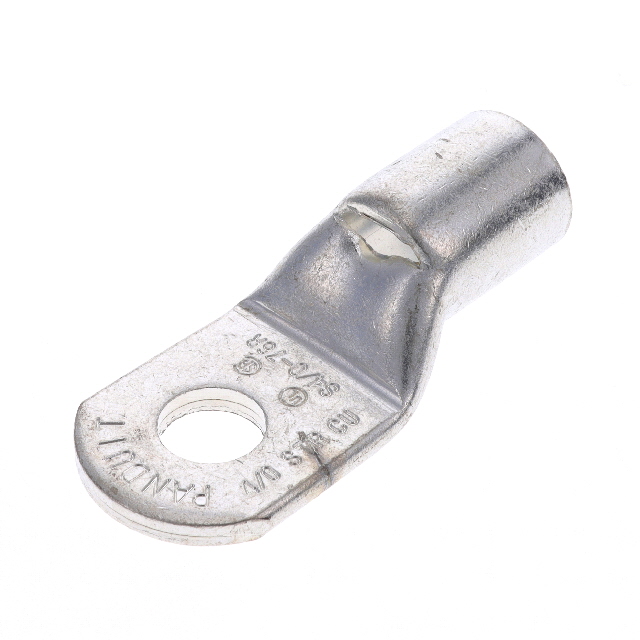

Panduit Corp Pan-Term® S4-0-76R-5 is a non-insulated ring terminal connector designed for demanding electrical applications. This component features a 7/16 stud size with a flat-sided profile for optimal surface contact. Engineered for crimp termination, it utilizes a funnel opening for easier wire insertion, accommodating 4/0 AWG wire gauge. The body is constructed from copper with a tin contact finish for excellent conductivity and corrosion resistance. With an overall length of 2.500 inches and a thickness of 0.140 inches, it provides robust mechanical integrity. The mounting type is free hanging (in-line), making it suitable for panel or equipment connections. This terminal is commonly found in industrial automation, power distribution, and heavy equipment manufacturing sectors.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 4/0 AWG |
| Insulation | Non-Insulated |
| Thickness | 0.140"" (3.56mm) |
| Terminal Type | Flat Sided |
| Stud/Tab Size | 7/16 Stud |
| Length - Overall | 2.500"" (63.50mm) |
| Termination | Crimp, Funnel Opening |
| Width - Outer Edges | 1.060"" (26.92mm) |
| Contact Material | Copper |
