S4/0-38R-5
CONN RING FLAT 4/0AWG #3/8 CRIMPManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

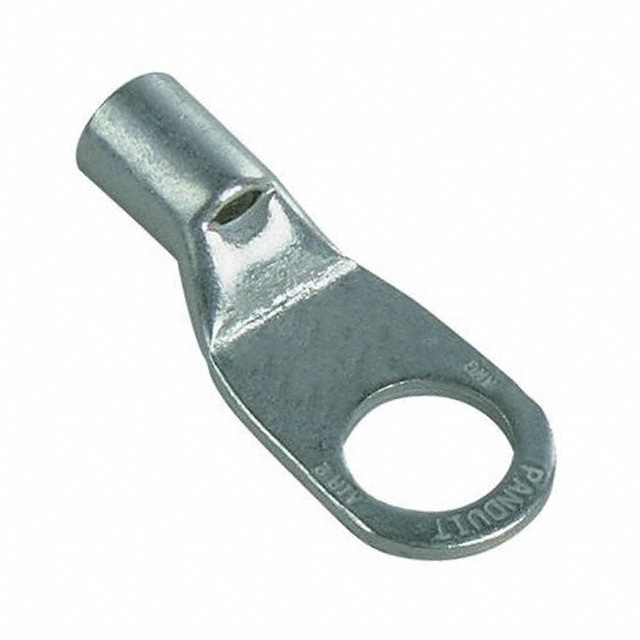

Panduit Corp S4-0-38R-5 is a non-insulated Pan-Term® ring terminal engineered for robust electrical connections. This component features a 3/8 stud size and a flat-sided terminal type, facilitating secure mounting. The 4/0 AWG wire gauge capacity is supported by a funnel opening for simplified wire insertion and a reliable crimp termination. Constructed from copper with a tin contact finish, this terminal offers excellent conductivity and corrosion resistance. Its overall length is 2.300 inches (58.42mm), with an outer edge width of 1.060 inches (26.92mm) and a thickness of 0.140 inches (3.56mm). Designed for free-hanging, in-line applications, this Panduit Corp ring terminal is commonly utilized in demanding industries such as power distribution, industrial automation, and heavy equipment manufacturing. It is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 4/0 AWG |
| Insulation | Non-Insulated |
| Thickness | 0.140"" (3.56mm) |
| Terminal Type | Flat Sided |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | 2.300"" (58.42mm) |
| Termination | Crimp, Funnel Opening |
| Width - Outer Edges | 1.060"" (26.92mm) |
| Contact Material | Copper |
