S3/0-14R-5
CONN RING FLAT 3/0AWG #1/4 CRIMPManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

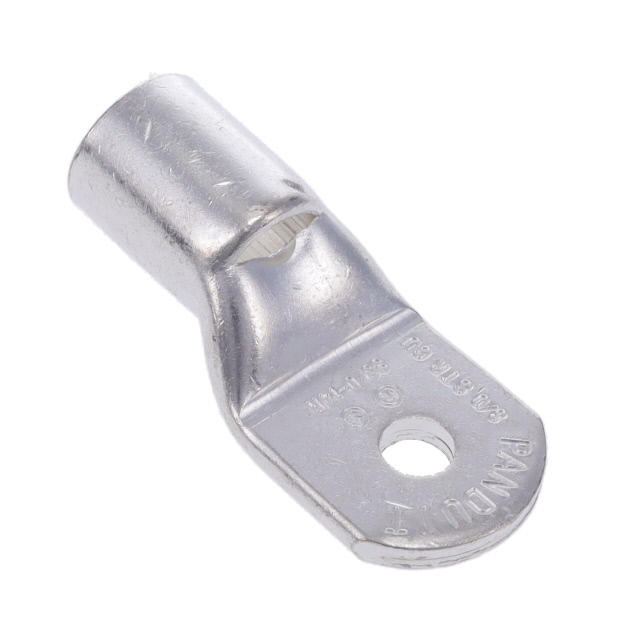

Panduit Corp Pan-Term® S3-0-14R-5 is a non-insulated, flat-sided ring terminal designed for robust electrical connections. This component features a 1/4 stud size and accommodates wire gauges up to 3/0 AWG, utilizing a funnel opening for simplified wire insertion and a reliable crimp termination. The overall length is 2.100 inches (53.34mm), with a width of 0.960 inches (24.38mm) and a thickness of 0.130 inches (3.30mm). Constructed from copper with a tin contact finish, this terminal is suitable for free-hanging (in-line) mounting. The S3-0-14R-5 is commonly employed in industrial power distribution, heavy-duty equipment, and automotive applications where secure and durable electrical connections are paramount. It is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 3/0 AWG |
| Insulation | Non-Insulated |
| Thickness | 0.130"" (3.30mm) |
| Terminal Type | Flat Sided |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | 2.100"" (53.34mm) |
| Termination | Crimp, Funnel Opening |
| Width - Outer Edges | 0.960"" (24.38mm) |
| Contact Material | Copper |
