S250-12R-5
CONN RING FLAT 250MCM #1/2 CRIMPManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

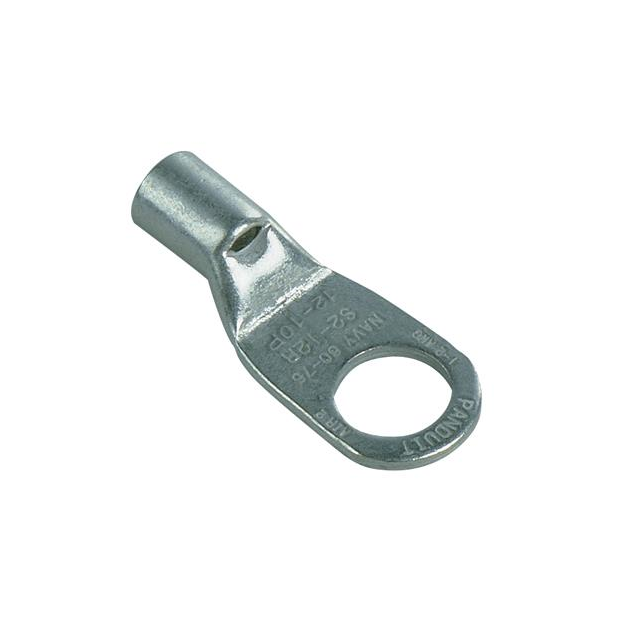

The Panduit Corp Pan-Term® S250-12R-5 is a non-insulated ring terminal connector designed for robust electrical connections. This component features a 1/2 stud size and is engineered for crimp termination with a funnel opening for easy wire insertion. The terminal is constructed from copper with a tin contact finish, ensuring excellent conductivity and corrosion resistance. It is rated for 250MCM (kcmil) wire gauge and offers a flat-sided terminal type for enhanced surface contact. The overall length is 1.010 inches (25.65mm) with a thickness of 0.140 inches (3.56mm) and a width of 1.170 inches (29.72mm) across its outer edges. This component is suitable for industrial applications requiring reliable termination for high-current power distribution and heavy-duty electrical systems. It is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 250MCM (kcmil) |
| Insulation | Non-Insulated |
| Thickness | 0.140"" (3.56mm) |
| Terminal Type | Flat Sided |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | 1.010"" (25.65mm) |
| Termination | Crimp, Funnel Opening |
| Width - Outer Edges | 1.170"" (29.72mm) |
| Contact Material | Copper |
