S2-12R-X
CONN RING FLAT 1-2AWG #1/2 CRIMPManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

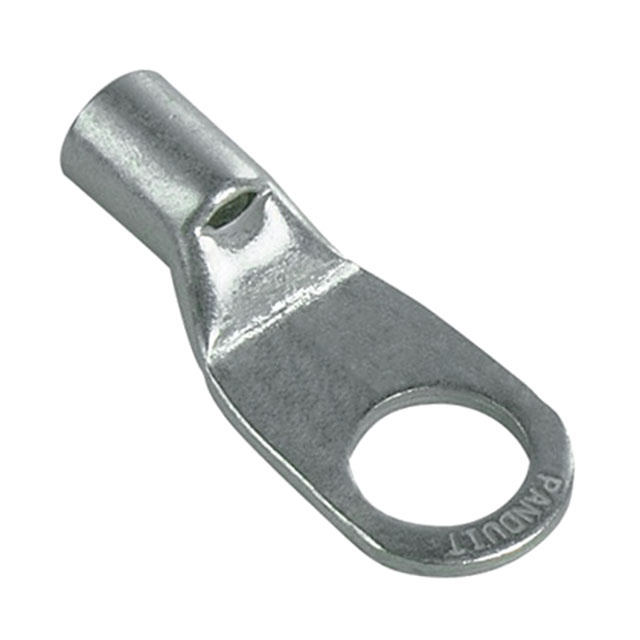

Panduit Corp Pan-Term® S2-12R-X is a non-insulated, flat-sided ring terminal designed for 1-2 AWG wire. This crimp-style connector features a funnel opening for easier wire insertion and a 1/2 stud size for secure mounting. Constructed from copper with a tin contact finish, it offers reliable conductivity. The overall length is 1.600 inches (40.64mm) with an outer width of 0.790 inches (20.07mm) and a thickness of 0.090 inches (2.29mm). Its free-hanging, in-line mounting type makes it suitable for various electrical applications, including industrial automation, power distribution, and general wiring within the automotive and aerospace sectors. Supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 1-2 AWG |
| Insulation | Non-Insulated |
| Thickness | 0.090"" (2.29mm) |
| Terminal Type | Flat Sided |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | 1.600"" (40.64mm) |
| Termination | Crimp, Funnel Opening |
| Width - Outer Edges | 0.790"" (20.07mm) |
| Contact Material | Copper |
