S2/0-76R-X
CONN RING FLAT 2/0AWG #7/16Manufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

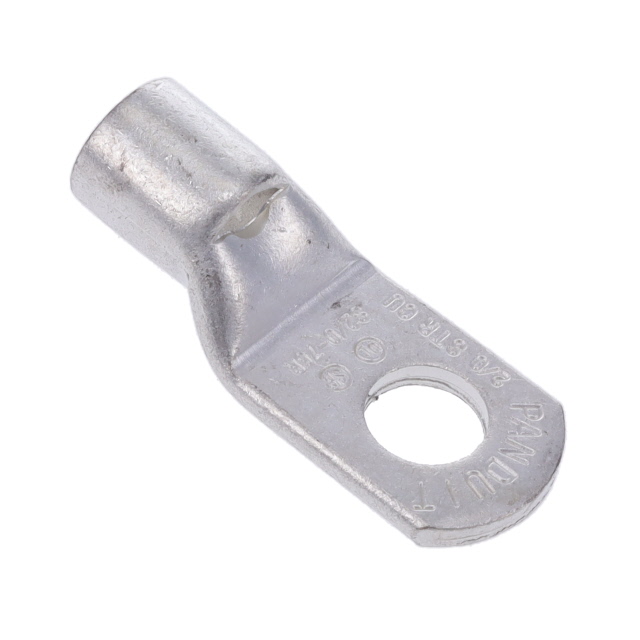

Panduit Corp Pan-Term® S2-0-76R-X is a non-insulated ring terminal connector designed for crimp termination. Featuring a 7/16 stud size and a flat-sided terminal type, this component is optimized for 2/0 AWG wire gauge. The funnel opening facilitates wire insertion, while the tin-plated copper contact material ensures reliable conductivity. With an overall length of 2.100 inches and a thickness of 0.130 inches, its outer edge width is 0.850 inches. This connector is suitable for in-line, free-hanging mounting configurations. It finds application in power distribution, industrial automation, and electrical infrastructure where robust and secure connections are critical. The product is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 2/0 AWG |
| Insulation | Non-Insulated |
| Thickness | 0.130"" (3.30mm) |
| Terminal Type | Flat Sided |
| Stud/Tab Size | 7/16 Stud |
| Length - Overall | 2.100"" (53.34mm) |
| Termination | Crimp, Funnel Opening |
| Width - Outer Edges | 0.850"" (21.59mm) |
| Contact Material | Copper |
