S2/0-56R-X
CONN RING FLAT 2/0AWG #5/16Manufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

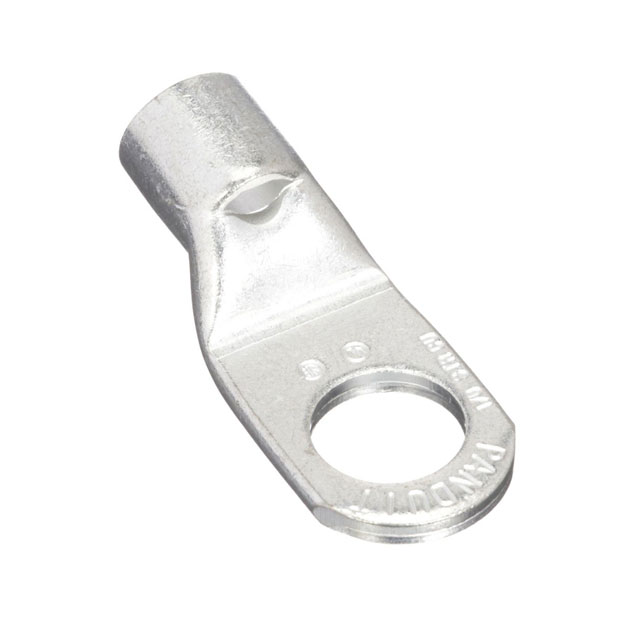

Panduit Corp Pan-Term® S2-0-56R-X is a non-insulated ring terminal connector designed for robust electrical connections. This component features a 5/16 stud size and a flat-sided terminal type, accommodating 2/0 AWG wire gauge with a recommended crimp termination utilizing a funnel opening for easier wire insertion. The overall length is 1.900 inches (48.26mm), with an outer width of 0.850 inches (21.59mm) and a thickness of 0.130 inches (3.30mm). Constructed from copper with a tin contact finish, it offers excellent conductivity and corrosion resistance. The mounting type is free hanging for in-line applications. This terminal is commonly deployed in industrial power distribution, automotive, and heavy equipment manufacturing where reliable wire termination is critical. It is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 2/0 AWG |
| Insulation | Non-Insulated |
| Thickness | 0.130"" (3.30mm) |
| Terminal Type | Flat Sided |
| Stud/Tab Size | 5/16 Stud |
| Length - Overall | 1.900"" (48.26mm) |
| Termination | Crimp, Funnel Opening |
| Width - Outer Edges | 0.850"" (21.59mm) |
| Contact Material | Copper |
