S2/0-14R-X
CONN RING FLAT 2/0AWG #1/4 CRIMPManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

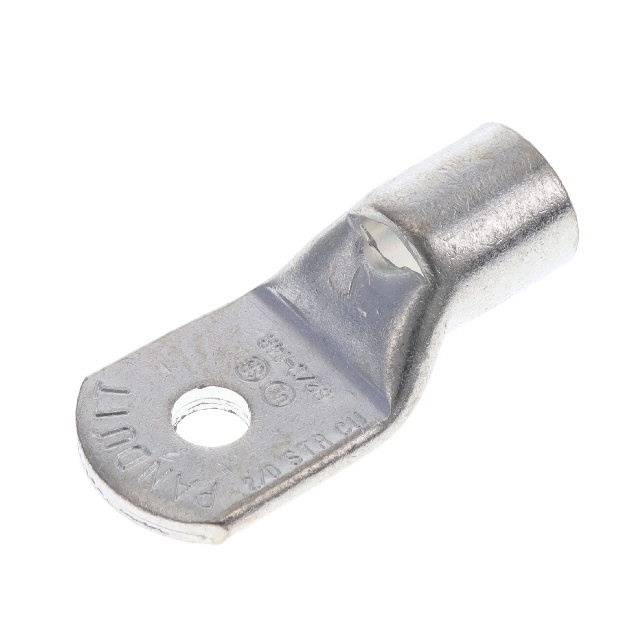

Panduit Corp's S2-0-14R-X is a non-insulated Pan-Term® ring terminal connector designed for robust electrical connections. This component features a 1/4" stud size and accommodates 2/0 AWG wire gauge, utilizing a reliable crimp termination with a funnel opening to facilitate wire insertion. The flat-sided terminal type and overall construction from copper with a tin contact finish ensure excellent conductivity and durability. With an overall length of 2.100" and a width of 0.850", it offers a substantial footprint for secure mounting. The S2-0-14R-X is commonly employed in industrial power distribution, heavy electrical equipment, and renewable energy systems where secure and high-current connections are essential. This bulk-packaged component is suitable for in-line, free-hanging applications.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 2/0 AWG |
| Insulation | Non-Insulated |
| Thickness | 0.130"" (3.30mm) |
| Terminal Type | Flat Sided |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | 2.100"" (53.34mm) |
| Termination | Crimp, Funnel Opening |
| Width - Outer Edges | 0.850"" (21.59mm) |
| Contact Material | Copper |
