PV8-12R-TY
CONN RING CIRC 8AWG #1/2 CRIMPManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

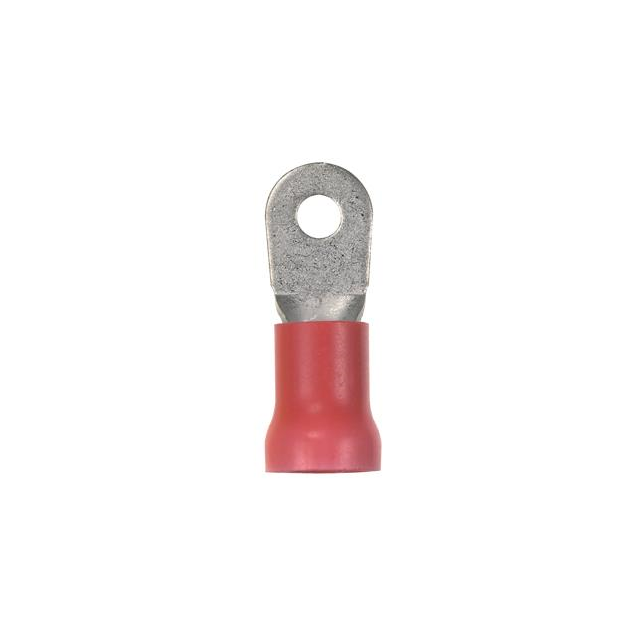

Panduit Corp Pan-Term® PV8-12R-TY is a red, insulated ring terminal connector designed for 8 AWG wire. This circular terminal features a 1/2 stud size and utilizes a reliable crimp termination method. Constructed from copper with a tin contact finish, it incorporates a brazed seam for enhanced durability. The overall length is 1.740 inches (44.20mm) with an outer width of 0.820 inches (20.83mm) and a material thickness of 0.040 inches (1.02mm). This component is suitable for free-hanging, in-line mounting applications. It finds use in power distribution and electrical connection systems across various industrial sectors. Supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Red |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 8 AWG |
| Insulation | Insulated |
| Thickness | 0.040"" (1.02mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | 1.740"" (44.20mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.820"" (20.83mm) |
| Contact Material | Copper |
