PV6-14RX-E
CONN RING FLAT 6AWG #1/4 CRIMPManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

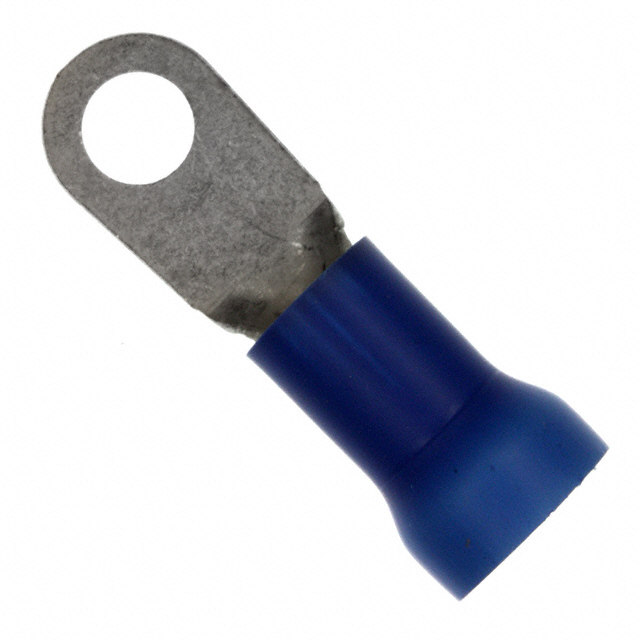

Panduit Corp Pan-Term® PV6-14RX-E is a blue, insulated ring terminal connector designed for 6 AWG wire. This component features a 1/4 stud size and a flat-sided terminal type, facilitating efficient flat-sided crimp termination. Constructed from copper with a tin contact finish, it ensures reliable conductivity. The brazed seam construction enhances durability, making it suitable for demanding applications. With an overall length of 1.610 inches (40.89mm) and a thickness of 0.045 inches (1.14mm), the terminal offers a width of 0.470 inches (11.94mm) across its outer edges. The free-hanging (in-line) mounting type simplifies installation in various electrical systems. This component is commonly utilized in the industrial, automotive, and telecommunications sectors. It is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: Vendor undefinedManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 6 AWG |
| Insulation | Insulated |
| Thickness | 0.045"" (1.14mm) |
| Terminal Type | Flat Sided |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | 1.610"" (40.89mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.470"" (11.94mm) |
| Contact Material | Copper |
