PV6-12R-X
CONN RING FLAT 6AWG #1/2 CRIMPManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

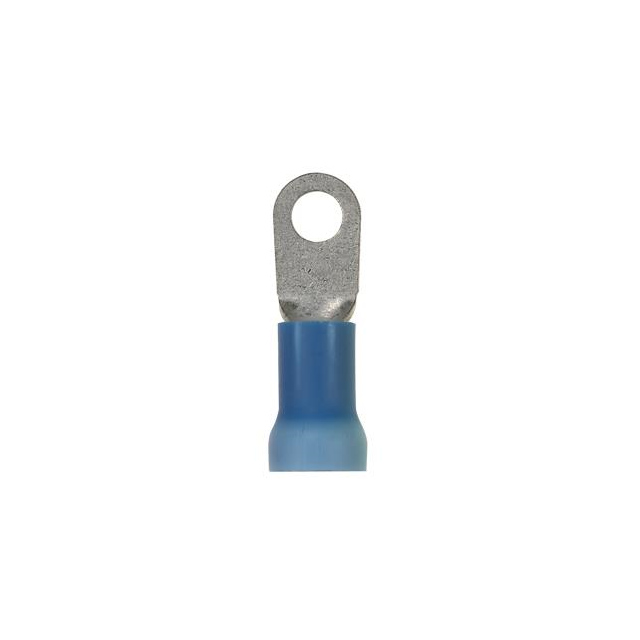

Panduit Corp Pan-Term® PV6-12R-X is a blue, insulated ring terminal designed for 6 AWG wire. This connector features a 1/2 inch stud size with a flat-sided terminal type, facilitating precise alignment in demanding applications. Constructed from high-conductivity copper with a tin contact finish, it ensures reliable electrical performance. The brazed seam construction provides enhanced durability and resistance to vibration, crucial for robust connections. With a crimp termination method, the PV6-12R-X offers a secure and permanent wire attachment. Its overall length is 1.840 inches (46.74mm), and it has a thickness of 0.045 inches (1.14mm) and an outer width of 0.820 inches (20.83mm). This component is commonly utilized in industrial automation, power distribution, and automotive manufacturing sectors where secure and reliable connections are paramount. Supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 6 AWG |
| Insulation | Insulated |
| Thickness | 0.045"" (1.14mm) |
| Terminal Type | Flat Sided |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | 1.840"" (46.74mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.820"" (20.83mm) |
| Contact Material | Copper |
