PV6-10RX-X
CONN RING FLAT 6AWG #10 CRIMPManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

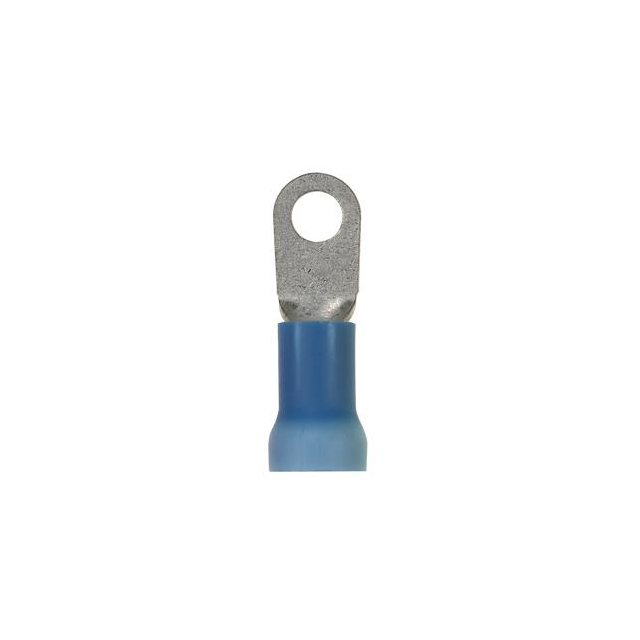

Panduit Corp Pan-Term® PV6-10RX-X is a blue, insulated ring terminal connector designed for 6 AWG wire. This component features a flat-sided terminal type with a 10 stud size, ensuring secure connection to 10 stud mountings. The overall length is 1.610 inches (40.89mm), with a width of 0.470 inches (11.94mm) and a thickness of 0.045 inches (1.14mm). Manufactured from copper with a tin contact finish, it utilizes a brazed seam for enhanced durability. The terminal is intended for crimp termination and offers a free-hanging (in-line) mounting type. This connector is suitable for applications across industrial automation, automotive, and telecommunications sectors. It is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 6 AWG |
| Insulation | Insulated |
| Thickness | 0.045"" (1.14mm) |
| Terminal Type | Flat Sided |
| Stud/Tab Size | 10 Stud |
| Length - Overall | 1.610"" (40.89mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.470"" (11.94mm) |
| Contact Material | Copper |
