PV4-38R-T
CONN RING FLAT 4AWG #3/8 CRIMPManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

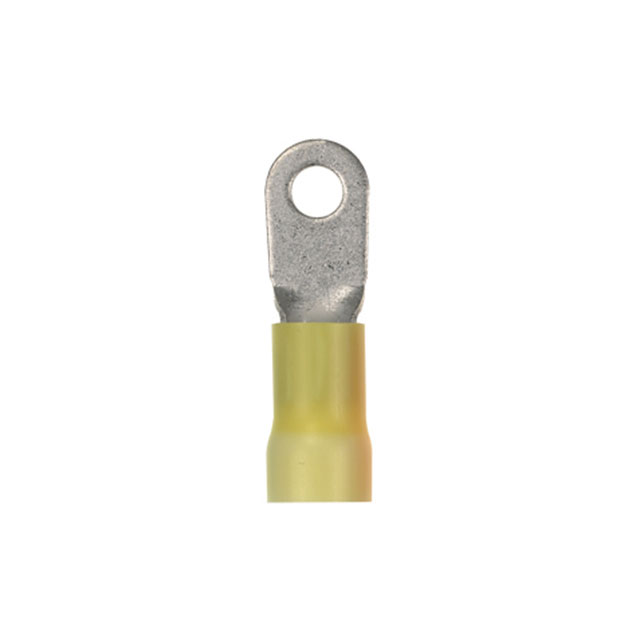

Panduit Corp Pan-Term® PV4-38R-T is a yellow, insulated ring terminal connector designed for robust electrical connections. This component features a flat-sided terminal type with a 3/8 stud size, suitable for secure stud mounting. The overall length is 1.950 inches (49.53mm) with a 0.050 inch (1.27mm) thickness and an outer edge width of 0.680 inches (17.27mm). Manufactured from copper with a tin contact finish, it utilizes a brazed seam for enhanced durability. The terminal is rated for 4 AWG wire and employs a crimp termination method. This Panduit Corp component is widely utilized in power distribution, industrial automation, and automotive applications where reliable electrical terminations are critical. Supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 4 AWG |
| Insulation | Insulated |
| Thickness | 0.050"" (1.27mm) |
| Terminal Type | Flat Sided |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | 1.950"" (49.53mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.680"" (17.27mm) |
| Contact Material | Copper |
