PV4-14RX-E
CONN RING FLAT 4AWG #1/4 CRIMPManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

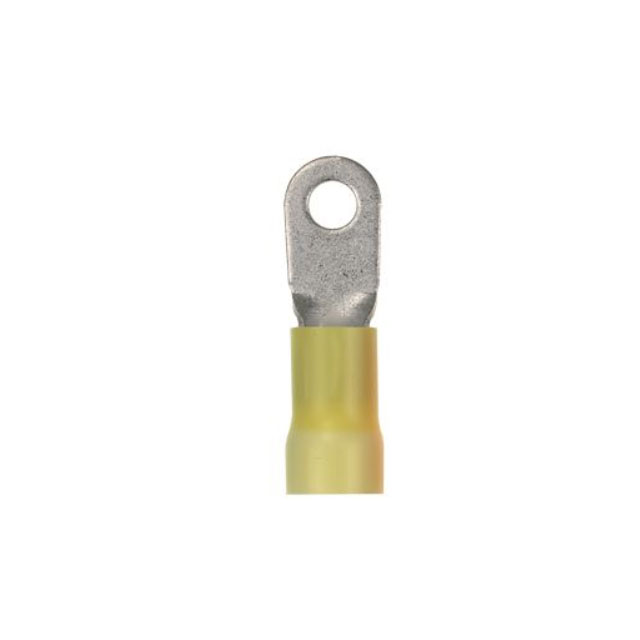

Panduit Corp Pan-Term® PV4-14RX-E is a Yellow, insulated ring terminal connector designed for 4 AWG wire with a 1/4" stud size. This connector features a flat-sided terminal type and a crimp termination method. The overall length is 1.870" (47.50mm) with an outer edge width of 0.550" (13.97mm) and a thickness of 0.050" (1.27mm). Constructed from copper with a tin contact finish, the PV4-14RX-E includes a brazed seam for enhanced durability. Its mounting type is free hanging (in-line). This component is commonly utilized in industrial automation, power distribution, and automotive electrical systems where secure and reliable connections are critical. The product is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 4 AWG |
| Insulation | Insulated |
| Thickness | 0.050"" (1.27mm) |
| Terminal Type | Flat Sided |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | 1.870"" (47.50mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.550"" (13.97mm) |
| Contact Material | Copper |
