PV4-12R-T
CONN RING FLAT 4AWG #1/2 CRIMPManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

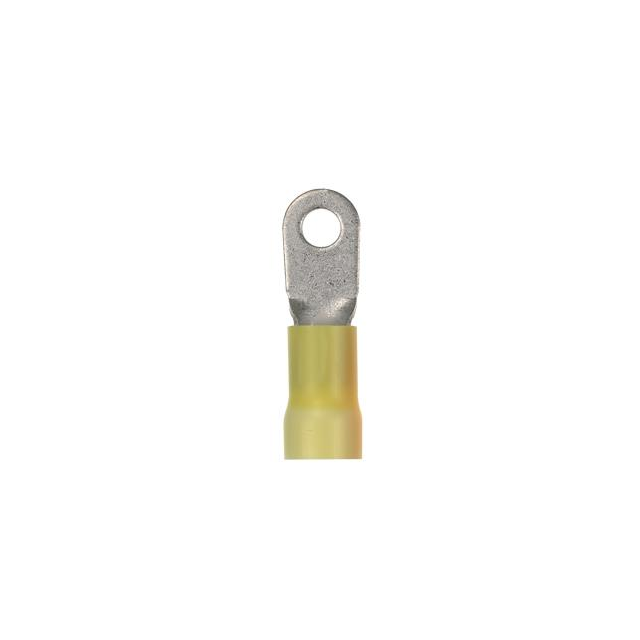

The Panduit Corp Pan-Term® PV4-12R-T is a yellow, insulated ring terminal connector designed for 4 AWG wire. This component features a 1/2 inch stud size with a flat-sided terminal type, facilitating secure and reliable crimp termination. Constructed from copper with a tin contact finish, it ensures excellent conductivity and corrosion resistance. The brazed seam construction enhances durability, making it suitable for demanding applications. Its overall length is 2.040 inches, with an outer width of 0.860 inches and a thickness of 0.050 inches. This connector is intended for free-hanging, in-line mounting. It finds extensive use in power distribution, electrical infrastructure, and industrial automation sectors where robust and dependable wire termination is critical. The PV4-12R-T is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 4 AWG |
| Insulation | Insulated |
| Thickness | 0.050"" (1.27mm) |
| Terminal Type | Flat Sided |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | 2.040"" (51.82mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.860"" (21.84mm) |
| Contact Material | Copper |
