PV4-10R-E
CONN RING FLAT 4AWG #10 CRIMPManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

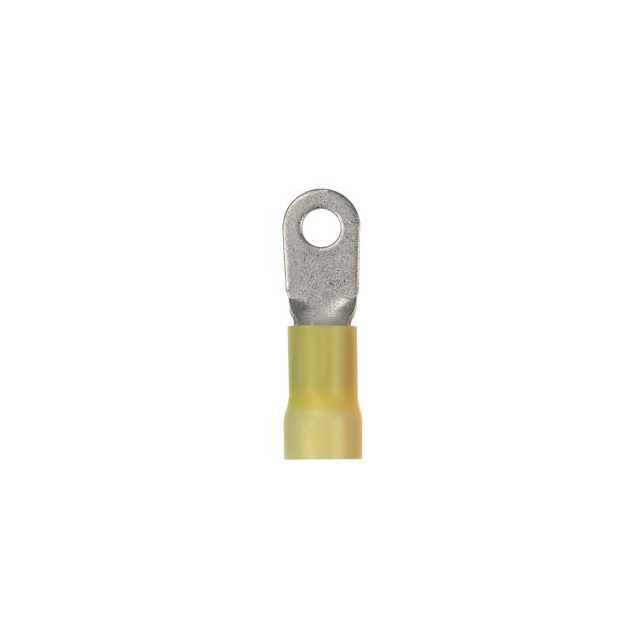

Panduit Corp Pan-Term® PV4-10R-E is a yellow, insulated ring terminal connector designed for reliable crimp termination of 4 AWG wire. This component features a flat-sided terminal type with a 10 stud size, facilitating secure connections. Constructed from copper with a tin contact finish, it ensures excellent conductivity. The brazed seam construction enhances durability, making it suitable for demanding applications. With an overall length of 1.880 inches and a width of 0.550 inches, this connector offers robust performance. Its free-hanging, in-line mounting type simplifies installation in various electrical systems. The PV4-10R-E is commonly employed in industrial automation, power distribution, and automotive manufacturing. Supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 4 AWG |
| Insulation | Insulated |
| Thickness | 0.050"" (1.27mm) |
| Terminal Type | Flat Sided |
| Stud/Tab Size | 10 Stud |
| Length - Overall | 1.880"" (47.75mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.550"" (13.97mm) |
| Contact Material | Copper |
