PV22-8R-M
CONN RING CIRC 22-26AWG #8 CRIMPManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

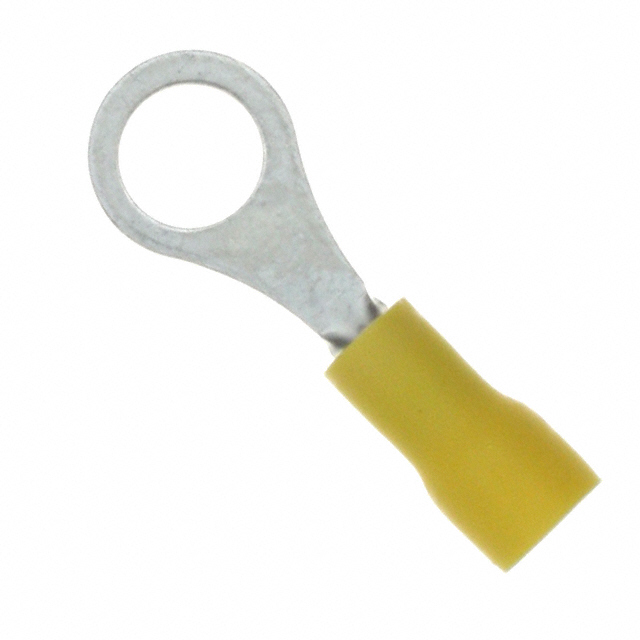

Panduit Corp Pan-Term® PV22-8R-M is a yellow, insulated ring terminal connector designed for crimp termination. This circular terminal accommodates wire gauges from 22 to 26 AWG and features a tin-plated copper contact material with a brazed seam for enhanced durability. The #8 stud size provides secure mounting. With an overall length of 0.780 inches (19.81mm) and a width of 0.260 inches (6.60mm), this free-hanging (in-line) terminal is suitable for applications in the automotive, industrial, and telecommunications sectors. The contact thickness is 0.020 inches (0.51mm).
Additional Information
Series: Pan-Term®RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Brazed Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 22-26 AWG |
| Insulation | Insulated |
| Thickness | 0.020"" (0.51mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 8 Stud |
| Length - Overall | 0.780"" (19.81mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.260"" (6.60mm) |
| Contact Material | Copper |
