PV22-8R-CYY
CONN RING CIRC 22-26AWG #8 CRIMPManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

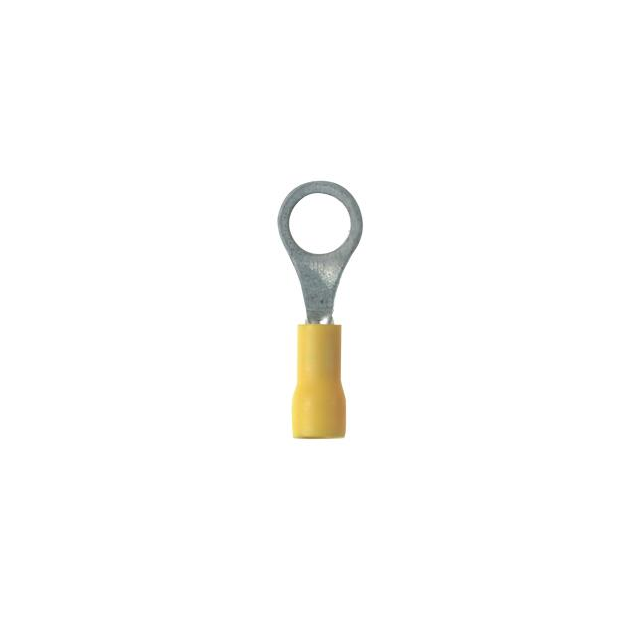

Panduit Corp Pan-Term® PV22-8R-CYY is a circular ring terminal connector designed for reliable crimp termination of wire gauges 22-26 AWG. Featuring a yellow, insulated construction with a tin-plated copper contact material, this component offers a secure connection for #8 stud sizes. The butted seam construction enhances durability, and the free-hanging (in-line) mounting type facilitates straightforward installation. With an overall length of 0.780 inches and a width of 0.260 inches, the PV22-8R-CYY is suitable for demanding applications across various industries including automotive, industrial automation, and telecommunications, ensuring robust electrical connections.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Butted Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 22-26 AWG |
| Insulation | Insulated |
| Thickness | 0.020"" (0.51mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 8 Stud |
| Length - Overall | 0.780"" (19.81mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.260"" (6.60mm) |
| Contact Material | Copper |
