PV22-8R-CY
CONN RING CIRC 22-26AWG #8 CRIMPManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

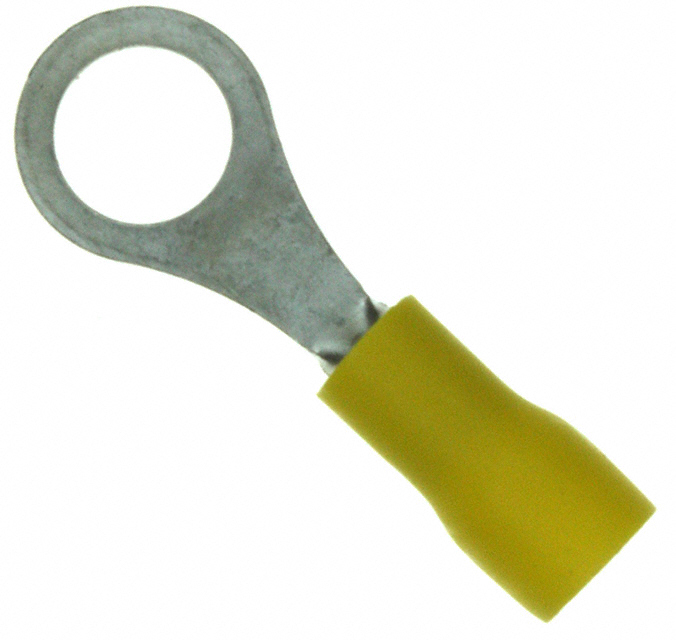

The Panduit Corp Pan-Term® PV22-8-CY is a circular, insulated ring terminal designed for robust electrical connections. This component features a tin-plated copper contact material with a brazed seam for enhanced durability. Engineered for wire gauges ranging from 22 to 26 AWG, it accommodates an 8 stud size with a free hanging (in-line) mounting type. The terminal offers a crimp termination method and has an overall length of 0.780 inches (19.81mm) and a width of 0.260 inches (6.60mm). Its yellow insulation and 0.020 inch (0.51mm) thickness ensure clear identification and protection in demanding applications. This component is commonly utilized in automotive, industrial automation, and power distribution systems.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 22-26 AWG |
| Insulation | Insulated |
| Thickness | 0.020"" (0.51mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 8 Stud |
| Length - Overall | 0.780"" (19.81mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.260"" (6.60mm) |
| Contact Material | Copper |
